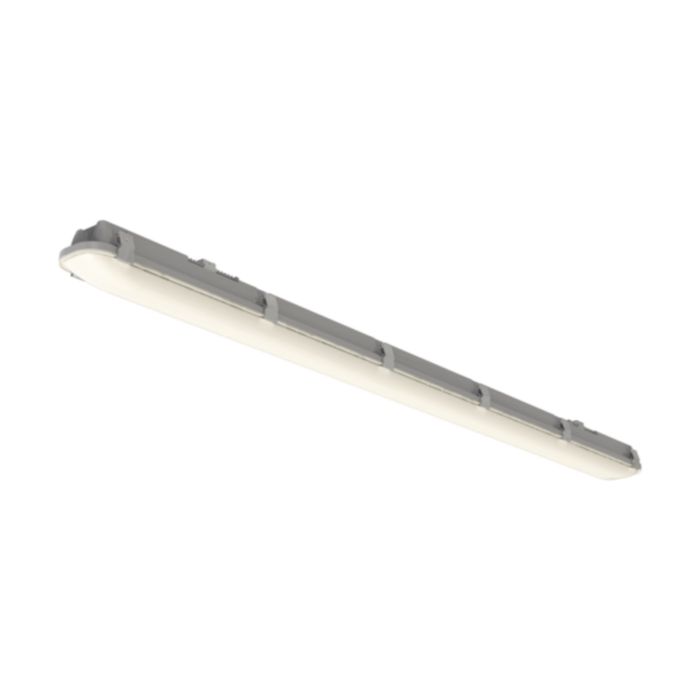

Ansell ATORE5/1 Tornado EVO 5ft LED Non Corrosive IP65 30/60W 4700-9300lm
The Ansell ATORE5/1 Tornado EVO 5ft LED Non Corrosive Batten offers selectable wattage options (30W/60W) and color temperatures (4000K, 5000K, 6500K), providing a 4700-9300lm output. Its IP65 rating ensures protection against dust and water, making it perfect for industrial and commercial environments.
- Configurable wattage options
- Switchable color temperatures: 4000K, 5000K, 6500K
- High efficiency up to 160 lm/W
- Durable polycarbonate construction
- Heavy-duty lockable stainless steel clips
- IP65 rated for superior dust and water protection
- Impact resistance with IK08 rating
- Wide beam angle: 120°
- Multiple integrated features: Microwave Sensor, Self-Test Emergency, Corridor Function, Switch Dimming, DALI Dimming
- 5-year warranty
The Ansell ATORE5/1 Tornado EVO 5ft LED Non Corrosive IP65 Batten is designed to provide adaptable and durable lighting solutions for industrial and commercial applications. With dual wattage settings of 30W and 60W, and three selectable color temperatures, this luminaire ensures high efficiency up to 160 lm/W while delivering between 4700 and 9300 lumens. This versatility makes it an ideal replacement for conventional fluorescent fixtures in various environments.
Construction and Durability
Constructed from robust polycarbonate, the Ansell Tornado EVO is built to withstand demanding conditions. Heavy-duty, lockable stainless steel clips provide added safety and security. The IP65 rating ensures excellent protection against dust and water ingress, making it suitable for both indoor and outdoor use. Its IK08 impact resistance rating further underscores its durability, ensuring it can handle physical impacts and mechanical stress.
Performance
Featuring a wide beam angle of 120°, the luminaire delivers broad and uniform light distribution. The selectable color temperatures (4000K, 5000K, 6500K) provide flexibility to meet various lighting requirements, from cool white to daylight. Designed to operate efficiently from -20°C to 40°C, this LED batten assures reliable performance across a range of conditions. It boasts an L80 rating for 100,000 hours, guaranteeing long-lasting operation and backed by a 5-year warranty.
Specifications:
- Voltage: 220-240V
- Wattage: 30W/60W (Selectable)
- Color Temperature: 4000K | 5000K | 6500K (Switchable)
- Lumens: 4700-9300 lm
- Beam Angle: 120°
- CRI: 80
- LED Lifetime: 100,000 h (L80)
- Energy Efficiency Class: D
- IP Rating: IP65
- IK Rating: IK08
- Operating Temperature: -20°C to 40°C
- Material: Polycarbonate
- Dimensions: Length: 1500 mm, Height: 80 mm
- Weight: 2.2 kg
- Installation: Surface-mounted or suspended
Warranty
The Tornado EVO is backed by a comprehensive 5-year warranty, ensuring long-term reliability and performance.
SKU | ANS-ATORE5/1 |
---|---|
Manufacturer Part Code | ATORE*/1 |
Warranty | 5 Years |
Material | Polycarbonate |
Colour | Grey |
Product Range | Tornado |
Ingress Protection | IP65 |
Output Type | Dual |
Colour Temperature | 4000K, 3000K, 6500K |
Dimmable | No |
Dimming type | Non Dim |
c/w Photocell? | No PC |
c/w PIR? | No PIR |
Is on Sale | No |
