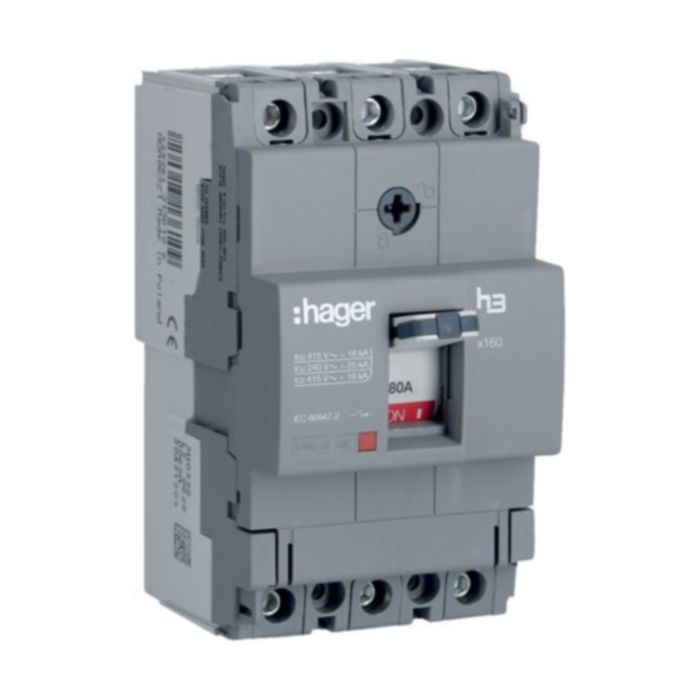

Hager HDA080Z 80A 18kA 3 Pole 3D Fixed Thermal, Fixed Magnetic MCCB h3 x160
Hager HDA080Z MCCB X160 3P 80A 18kA
- Thermal magnetic trip unit, two versions: Z/E version: fixed thermal and fixed magnetic. U version: adjustable thermal and fixed magnetic.
- Access to mechanical test button on cover.
- Lockable cover protects MCCB settings.
- Integrated padlocking handle: Ø 4mm.
- Connection capacity: 95mm² rigid cables, 70mm² flexible cables.
- Cage terminals
- Conforms to BS EN 60947-2.
- Fixed thermal: 1x In Adjustable thermal: 0.63 - 0.8 - 1 x In
Estimated delivery 3-5 Working days
SKU
HG-HDA080Z
£162.39 £194.87
Product Downloads
Product Categories
Hager HDA080Z MCCB X160 3P 80A 18kA
| SKU | HG-HDA080Z |
|---|---|
| Manufacturer Part Code | HDA080Z |
| Product Range | X160 |
| Mounting Method | Backplate |
| Current Rating | 80A |
| Short Circuit Rating | 18 kA |
| Pole Configuration | 3P |
| Cable Capacity | 95 mm2 |
| Depth (mm) | 97.00 mm |
| Width (mm) | 75.00 mm |
| Height (mm) | 130.00 mm |
| Standards | IEC60947-2 |
| Voltage | 400V |
| Ingress Protection | IP4X |
| Is on Sale | No |
| Brand | X160 | |
| Circuit Breakers | Description | Product | MCCB | |
| Circuit Breakers | Description | Product Type | X160 3P | |
| Circuit Breakers | Description | Product | Circuit Breaker | |
| Circuit Breakers | Dimensions | Depth (EF008810) | 97 mm | |
| Circuit Breakers | Dimensions | Height (EF008809) | 130 mm | |
| Circuit Breakers | Features | Ingress Protection (EF005474) | IP4X | |
| Circuit Breakers | Features | Mounting (EF000003) | Backplate | |
| Circuit Breakers | Features | Pole Configuration | Triple Pole (3P) | |
| Circuit Breakers | Features | Short Circuit Rating | 18 kA | |
| Circuit Breakers | General | Standards | IEC60947-2 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 80 A | |
| Circuit Breakers | Technical Data | Voltage | 400 V |
