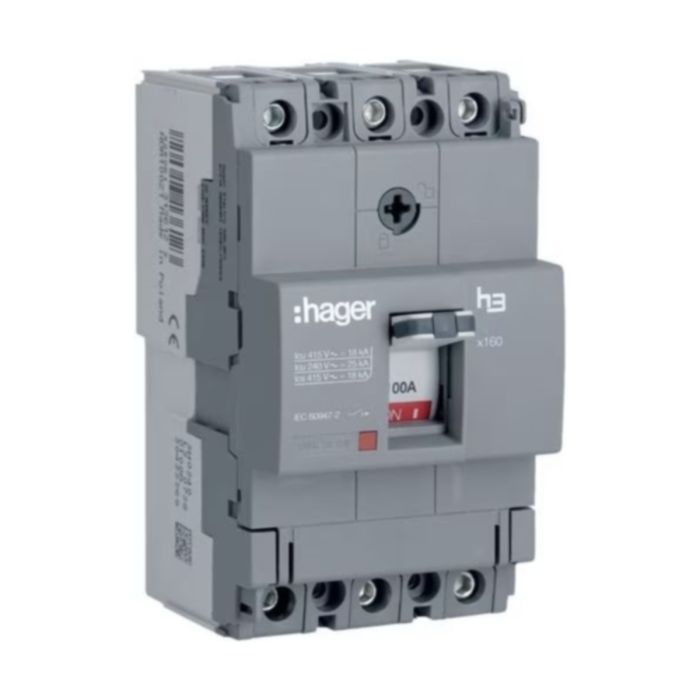

Hager HDA100Z 100A 18kA 3 Pole 3D Fixed Thermal, Fixed Magnetic MCCB h3 x160
- Thermal magnetic trip unit, two versions: Z/E version: fixed thermal and fixed magnetic. U version: adjustable thermal and fixed magnetic.
- Access to mechanical test button on cover.
- Lockable cover protects MCCB settings.
- Integrated padlocking handle: Ø 4mm.
- Connection capacity: 95mm² rigid cables, 70mm² flexible cables.
- Cage terminals
- Conforms to BS EN 60947-2.
- Fixed thermal: 1x In Adjustable thermal: 0.63 - 0.8 - 1 x In
UK Delivery:
- Orders over £150 excluding VAT – FREE DELIVERY
- Orders under £150 excluding VAT – Delivery £7.50 + VAT
A very small number of large, heavy items may attract an additional charge. This charge is calculated based on the length/weight. Depending on your area, there will usually be a carriage-paid order value threshold where FREE delivery can still be attained.
Same Day Despatch On In-Stock Items:
We despatch in-stock items on the same working day when they are ordered before 3 PM GMT.
Delivery Charges for Length Items (UK Mainland):
- 1-2M Length Items: Free delivery to UK Mainland on orders over £500; for orders under £500, delivery is charged at £12.50 + VAT.
- 2M+ Length Items: Free delivery to UK Mainland on orders over £800; for orders under £800, delivery is charged at £15.00 + VAT.
- Pallet Delivery: For items requiring pallet delivery, free delivery is available for UK Mainland orders over £3000; for orders under £3000, a £50 delivery charge applies.
Delivery Charges for Scottish Highlands, Northern Ireland, and Channel Isles:
- Parcels: £20 + VAT delivery charge.
- 1-2M Length Items: £35 + VAT delivery charge.
- 2M+ Length Items: £55 + VAT delivery charge.
- Pallet Delivery: £120 + VAT delivery charge.
No free delivery is available for these regions.
If You Have a Deadline:
Out-of-stock items can take up to the recommended Delivery Time, which you can find on every product page. We will notify you if they are likely to take longer than this. If you have a deadline, please contact us by email or phone. We will work with you to arrange a better-suited delivery time or date.
Next Working Day:
All in-stock items are despatched via traceable and insured carriers on a next-day service. If certain items state a longer delivery time, please contact us as we can often arrange next-day delivery for most items at an additional cost where applicable.
NON-Stock Items:
Any items that are not stock items will be ordered and sent directly from our suppliers. All manufacturers we use are highly recommended and despatch their products via traceable and insured carriers. These items may take longer than the expected delivery time, but we will notify you in advance if this is likely to occur.
Received Damaged:
If any items are received damaged in transit and require a replacement or refund, please notify us verbally or in writing within 48 hours of delivery. Ensure that clear photographs are provided showing both the packaging—particularly any damage to it—and the damaged item(s). This will help us process the correct paperwork for a replacement or refund with minimal delay.
SKU | HG-HDA100Z |
---|---|
Manufacturer Part Code | HDA100Z |
Product Range | X160 |
Mounting Method | Backplate |
Current Rating | 100A |
Short Circuit Rating | 18 kA |
Pole Configuration | 3P |
Cable Capacity | 95 mm2 |
Depth (mm) | 97.00 mm |
Width (mm) | 75.00 mm |
Height (mm) | 130.00 mm |
Standards | IEC60947-2 |
Voltage | 400V |
Ingress Protection | IP4X |
Is on Sale | No |
Brand | X160 | |
Circuit Breakers | Description | Product | MCCB | |
Circuit Breakers | Description | Product Type | X160 3P | |
Circuit Breakers | Description | Product | Circuit Breaker | |
Circuit Breakers | Dimensions | Depth (EF008810) | 97 mm | |
Circuit Breakers | Dimensions | Height (EF008809) | 130 mm | |
Circuit Breakers | Features | Ingress Protection (EF005474) | IP4X | |
Circuit Breakers | Features | Mounting (EF000003) | Backplate | |
Circuit Breakers | Features | Pole Configuration | Triple Pole (3P) | |
Circuit Breakers | Features | Short Circuit Rating | 18 kA | |
Circuit Breakers | General | Standards | IEC60947-2 | |
Circuit Breakers | Technical Data | Current Rating (EF000227) | 100 A | |
Circuit Breakers | Technical Data | Voltage | 400 V |
