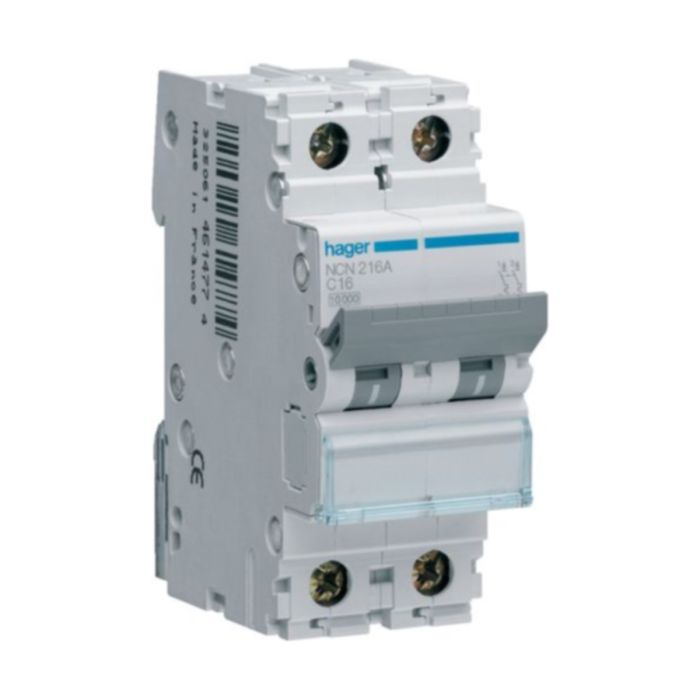

Hager NCN216A 16A 10kA/15kA 2 Pole C Curve MCB
Hager NCN216A MCB DP Type C 16A 10kA
- Provides protection against short circuits, protection against overload current, control, isolation, trip free mechanism.
- The state of isolation is clearly indicated by the “OFF” mechanical position on the toggle with the green colour.
- Connection capacity: 25mm² flexible conductor, 35mm² rigid conductor.
- Conforms to: BS EN 60898-2 (10kA), BS EN 60947-2 (15kA).
Hager NCN216A MCB DP Type C 16A 10kA
SKU | HG-NCN216A |
---|---|
Manufacturer Part Code | NCN216A |
Current Rating | 16A |
Trip Type | Type C |
Short Circuit Rating | 10 kA |
Pole Configuration | 2P |
Voltage | 230-400V |
Width (mm) | 35.00 mm |
Cable Capacity | 35 (Rigid) 25 (Flexible) mm2 |
Standards | BS EN 60898 |
Is on Sale | No |
Circuit Breakers | Description | Product | MCB | |
Circuit Breakers | Description | Product Type | DP Type C | |
Circuit Breakers | Description | Product | Circuit Breaker | |
Circuit Breakers | Description | Type | MCB | |
Circuit Breakers | Dimensions | Width (EF008808) | 35 mm | |
Circuit Breakers | Features | Pole Configuration | DP | |
Circuit Breakers | Features | Short Circuit Rating | 10 kA | |
Circuit Breakers | Features | Trip Type | Type C | |
Circuit Breakers | General | Standards | BS EN 60898 | |
Circuit Breakers | Technical Data | Current Rating (EF000227) | 16 A | |
Circuit Breakers | Technical Data | Voltage | 230 | 400 V |
