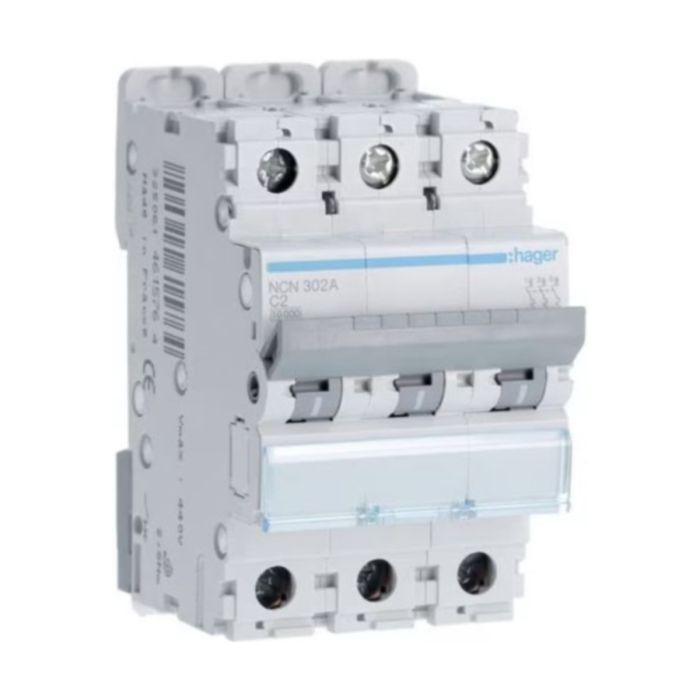

Hager NCN302A 2A 10kA/15kA 3 Pole C Curve 3 Module MCB

Hager NCN302A MCB TP Type C 2A 10kA

Provides protection against short circuits, protection against overload current, control, isolation, trip free mechanism.
The state of isolation is clearly indicated by the “OFF” mechanical position on the toggle with the green colour.
Connection capacity: 25mm² flexible conductor, 35mm² rigid conductor.
Conforms to: BS EN 60898-2 (10kA), BS EN 60947-2 (15kA).

Estimated delivery 3-5 Working days

SKU

HG-NCN302A

£35.58 £42.70

Product Downloads

Product Categories

Hager NCN302A MCB TP Type C 2A 10kA

Circuit Breakers \| Description \| Product	MCB
Circuit Breakers \| Description \| Product Type	TP Type C
Circuit Breakers \| Description \| Product	Circuit Breaker
Circuit Breakers \| Description \| Type	MCB
Circuit Breakers \| Dimensions \| Width (EF008808)	52.5 mm
Circuit Breakers \| Features \| Pole Configuration	Triple Pole (3P)
Circuit Breakers \| Features \| Short Circuit Rating	10/15 kA
Circuit Breakers \| Features \| Trip Type	Type C
Circuit Breakers \| General \| Standards	BS EN 60898 BS EN 60947-2
Circuit Breakers \| Technical Data \| Current Rating (EF000227)	2 A
