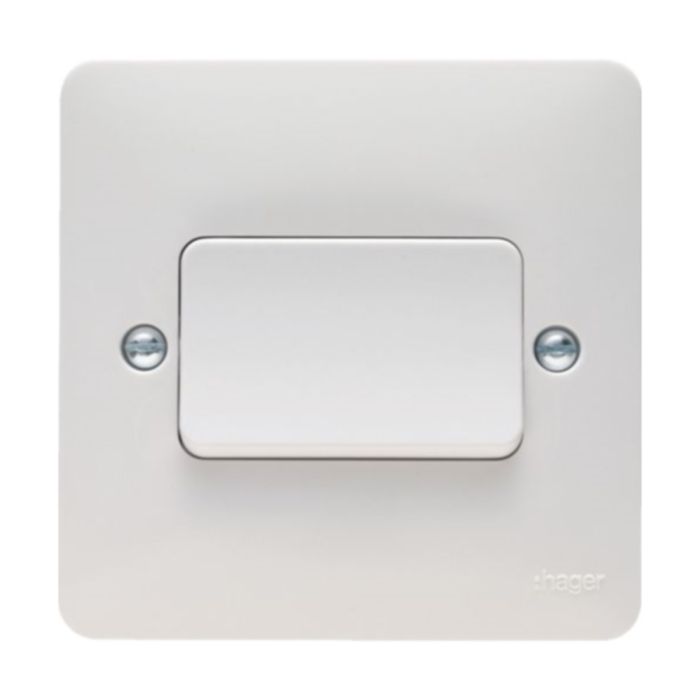

Hager WMPS12W Sollysta Plate Switch 1 Gang 2 Way c/w Wide Rocker 10AX White
The WMPS12W features a unique patented LOOP terminal to allow neutral looping at the switch. For multi-gang switch use of a 25mm mounting box will provide increased wiring space. The high-quality face plates provide resistance to impact and heat for maximum robustness and it has been independently tested and certified. The moulded lead-ins help to guide the driver blade to the screw head and a positive wire end stop provides added security of connection.
- Unique patented loop terminal allows neutral looping at the switch
- Complies with BS EN 60669-1, a.c only.
- ‘X‘ rated - No need to derate for fluorescent loads
- Clear terminal markings: 1-way L1, 2-way L2
- Capacity of each terminal - 2 x 4.0mm² conductors
- For multigang switches use of a 25mm mounting box will provide increased wiring space
- Supplied with M3.5 x 20mm long fixing screws and screw covers
- High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702
10AX 1G 2W WALL SWITCH WIDE ROCKER
SKU | HG-WMPS12W |
---|---|
Manufacturer Part Code | WMPS12W |
Product Range | Sollysta |
Current Rating | 10A |
Face colour | White |
Width (mm) | 24.00 mm |
Height (mm) | 86.00 mm |
Length (mm) | 86.00 mm |
Gangs | 1 |
Number of ways | 2 |
Standards | BS EN 60669 |
Is on Sale | No |
Brand | Sollysta | |
Wiring Accessories | Description | Gangs | 1 Gang | |
Wiring Accessories | Description | Product | Plate Switch | |
Wiring Accessories | Description | Product Type | 1 Gang 2 Way c/w Wide Rocker | |
Wiring Accessories | Description | Product | Switch | |
Wiring Accessories | Description | Ways | 2 Way | |
Wiring Accessories | Dimensions | Length (EF004265) | 86 mm | |
Wiring Accessories | Dimensions | Width (EF008808) | 24 mm | |
Wiring Accessories | General | Standards | BS EN 60669 | |
Wiring Accessories | Material & Finish | Face Colour | White | |
Wiring Accessories | Technical Data | Current Rating (EF000227) | 10 A |
