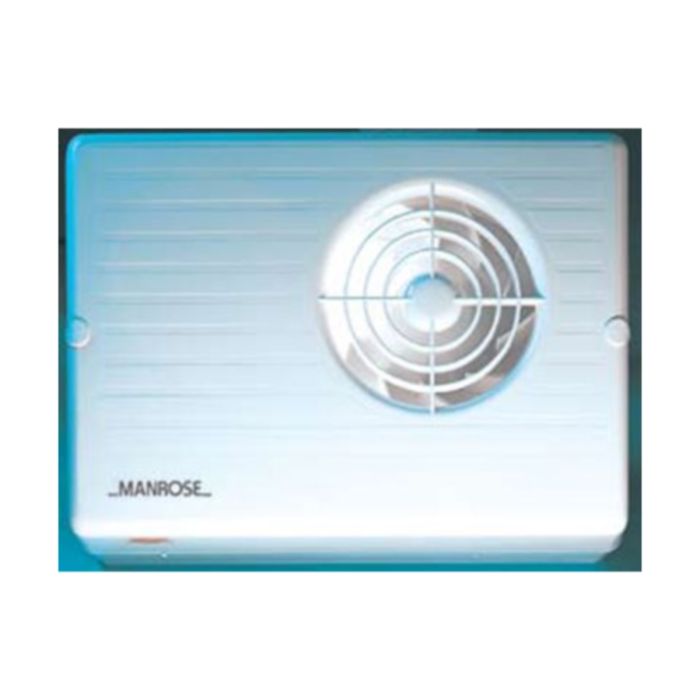

Manrose 100mm Centrifugal Fan Standard
- The CF100 and CF200 centrifugal fans use the latest technology to provide extremely powerful, yet very quiet and vibration free ventilation. The CF100/200 ranges are designed for bathrooms, toilets, cloakrooms and utility rooms.
- Designed to move air over long distances, these units will give maximum performance even against pressures caused by long lengths of ducting and resistance by grilles.
- All models are fitted with a built-in spring operated non-return flap into the discharge spigot to stop backdraughts.
- There are seven models in each series. The CF100 has an extract rate of 90m³/hr 25 litres per second, the CF200 range have an extract rate of 110m³/hr 31 litres per second.
- The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.
- Power to the CF100/200 range is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.
- Designed to comply with the Building Regulations on Ventilation (F1).
Estimated delivery 3-5 Working days
SKU
MANR-CF200S
£40.57 £48.68
Product Downloads
Product Categories
Related Products
Click Mode CMA020 10A 3 Pole Fan Isolation Plate SwitchSKU: SCOL-CMA020£4.38 £5.26
Stock available Next working day
Hager WMPS3PIF Sollysta 1 Gang 10A TP Fan Isolator Switch White c/w Fan SymbolSKU: HG-WMPS3PIF£3.69 £4.43
Stock available Next working day
Domus 100mm Gravity Flap Wall Outlet TerracottaSKU: DMS-4900T£3.59 £4.31
Stock available Next working day
Domus 100mm Gravity Flap Wall Outlet WhiteSKU: DMS-4900W£2.53 £3.04
Stock available Next working day
Domus 1100-4 Pipe Standard Round Ducting 100mm x 1mSKU: DMS-1100-4£7.01 £8.41
Stock available Next working day
Domus Plastic Ventilation Duct Sealant 310mlSKU: DMS-DDSEAL£13.27 £15.92
Stock available Next working day
Domus 100mm Louvred Grille White c/w Flyscreen & Round SpigotSKU: DMS-F4904W£4.22 £5.06
Stock available Next working day
Click PRW208 10A 3 Pole Fan Isolation Pull Cord SwitchSKU: SCOL-PRW208£9.47 £11.36
Stock available Next working day
Domus 100mm Gravity Flap Wall Outlet BlackSKU: DMS-44900BK£5.68 £6.82
Stock available Next working day
Domus 100mm Gravity Flap Wall Outlet BrownSKU: DMS-4900B£2.53 £3.04
Stock available Next working day
Hager WMCS3PIF Sollysta 10A Ceiling Switch TP Marked Fan & Isolator WhiteSKU: HG-WMCS3PIF£12.50 £15.00
Stock available Next working day
Domus 100mm Louvred Grille Wall Outlet BlackSKU: DMS-4904BK£3.30 £3.96
Stock available Next working day
Domus 100mm Straight Pipe Connector c/w DamperSKU: DMS-494£7.33 £8.80
Stock available Next working day
Domus 100mm Louvred Grille Brown c/w Flyscreen & Round SpigotSKU: DMS-F4904B£4.22 £5.06
Stock available Next working day
- Standard model for remote switching
- 100mm / 4" standard rigid or flexible duct
- These fans are double insulated and do not require an earth
- All wiring must comply with current IEE regulations
- A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3amp fuse fitted
- The fan should not be accessible to a person using either the shower or bath and mounted to a minimum of 1.8 metres from the floor
- Wattage: 17W
- Voltage: 220-240V - AC. 50Hz
- Maximum pressure: 120 p.a.
- Fan speed: 1400 r.p.m.
- Sound volume: 45.0 dB(A)
- 110m3/hr, 31 litres per second
- Diamensions: Height: 185mm x Width: 260mm x Depth: 90mm
| SKU | MANR-CF200S |
|---|---|
| Manufacturer Part Code | CF200S |
| Material | ABS Thermoplastic |
| Depth (mm) | 135.00 mm |
| Air Extraction Rate m3/h | 110 M3/h |
| Maximum Sound Pressure Level | 45 Db |
| Maximum Speed | 1400 rpm |
| Shape | Rectangular |
| c/w Duct | Yes |
| c/w Timer | No |
| Frequency | 50 Hz |
| Number of Phases | Single |
| Impeller Diameter | 100 mm |
| Mounting Method | Wall |
| Width (mm) | 185.00 mm |
| Is on Sale | No |
| Fans | Description | Product | Fan | |
| Fans | Description | Product Type | Centrifugal Standard | |
| Fans | Description | Type | Centrifugal | |
| Fans | Dimensions | Overall Length | 260 mm | |
| Fans | Dimensions | Overall Width | 185 mm | |
| Fans | Features | Air Extraction Rate m3/h | 110 M3/h | |
| Fans | Features | Maximum Standard Air Supply | 89 Degrees C | |
| Fans | Features | Motor Power | 17 W | |
| Fans | Features | Mounting | Wall | |
| Fans | Features | Number of Poles | 2P | |
| Fans | Features | Use | Domestic | |
| Fans | Features | c/w Duct | Y | |
| Fans | Features | c/w Timer | N | |
| Fans | Technical Data | Frequency | 50 Hz | |
| Fans | Technical Data | Maximum Sound Pressure Level | 45 Db | |
| Fans | Technical Data | Maximum Speed | 1400 rpm | |
| Fans | Technical Data | Number of Phases | Single |
