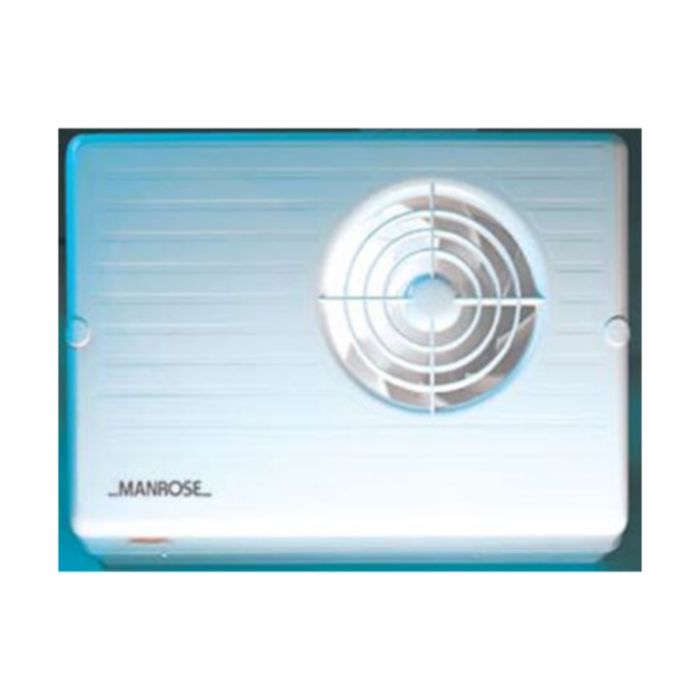

Manrose 100mm Centrifugal Fan Electronic Timer

The CF100 and CF200 centrifugal fans use the latest technology to provide extremely powerful, yet very quiet and vibration free ventilation. The CF100/200 ranges are designed for bathrooms, toilets, cloakrooms and utility rooms.
Designed to move air over long distances, these units will give maximum performance even against pressures caused by long lengths of ducting and resistance by grilles.
All models are fitted with a built-in spring operated non-return flap into the discharge spigot to stop backdraughts.
There are seven models in each series. The CF100 has an extract rate of 90m³/hr 25 litres per second, the CF200 range have an extract rate of 110m³/hr 31 litres per second.
The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.
Power to the CF100/200 range is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.
Designed to comply with the Building Regulations on Ventilation (F1).

Stock available Next working day

SKU

MANR-CF200T

£34.21 £41.05

Product Downloads

Product Categories

More Information
SKU	MANR-CF200T
Manufacturer Part Code	CF200T
Material	ABS Thermoplastic
Depth (mm)	135.00 mm
Air Extraction Rate m3/h	110 M3/h
Maximum Sound Pressure Level	45 Db
Maximum Speed	1400 rpm
c/w Timer	Yes
Frequency	50 Hz
Number of Phases	Single
Impeller Diameter	98 mm
Voltage	220-240V
Width (mm)	260.00 mm
Is on Sale	No

Fans \| Description \| Product	Fan
Fans \| Description \| Product Type	Centrifugal Standard
Fans \| Description \| Type	Centrifugal
Fans \| Dimensions \| Overall Length	260 mm
Fans \| Dimensions \| Overall Width	185 mm
Fans \| Features \| Air Extraction Rate m3/h	110 M3/h
Fans \| Features \| Maximum Standard Air Supply	89 Degrees C
Fans \| Features \| Motor Power	17 W
Fans \| Features \| Mounting (EF000003)	Wall
Fans \| Features \| Number of Poles	2P
Fans \| Features \| Use	Domestic
Fans \| Features \| c/w Duct	Y
Fans \| Features \| c/w Timer	N
Fans \| Technical Data \| Frequency	50 Hz
Fans \| Technical Data \| Maximum Sound Pressure Level	45 Db
Fans \| Technical Data \| Maximum Speed	1400 rpm
Fans \| Technical Data \| Number of Phases	Single
