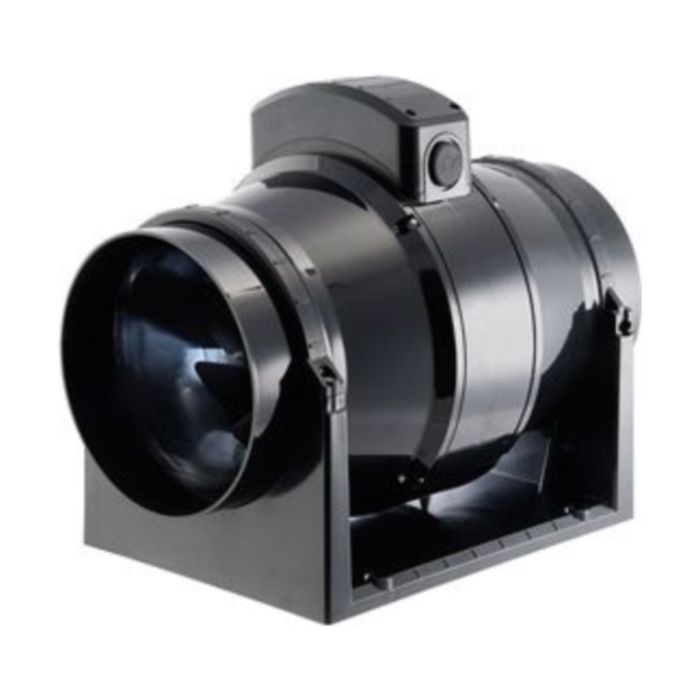

Manrose MF150T 150mm In-line Mixed Flow Extractor Fan c/w Timer
Manrose MF150T Mixflo Fan is a powerful in-duct mounted mixed flow fan that produces high working pressures while keeping noise levels down. This double-insulated fan is fully code-compliant and has easy installation and maintenance features.
- High quality ball bearing, long life motors, continuously rated and warranted for a minimum of 30,000 hours or 3 years
- High air flows are achieved through flexible duct
- Compact overall dimensions
- All models 3 speed settings selected via internal dip switch
- Double Insulation – no earth required
- Fully Building Code compliant
- Fully BEAB approved rated to IPX4
- Easy installation and maintenance with the fan assembly easily removed from rigid ducting installations using the specially designed construction
Manrose MF150T Mixflo Fan is a powerful in-duct mounted mixed flow fan that has been designed to produce higher working pressures for applications that require high air flows, with low relative noise. Suitable for use with either rigid or flexible ducting, this fan is perfect for a variety of applications.
Additionally, it features high-quality ball bearing, long-life motors that are continuously rated and warranted for a minimum of 30,000 hours or 3 years. The double insulation design means no earth is required, while the fans fully code-compliant status ensures total compliance with regulations. The fan can achieve high air flows through flexible ducting, and its compact overall dimensions make it an ideal space-saving solution.
The Manrose MF150T Mixflo Fan is available in two-speed fan settings (for 100mm/4", 125mm/5", and 150mm/6" models) or three-speed fan settings for the 200mm/8" model. Fully BEAB approved and rated to IPX4, its easy to install and maintain, and the fan assembly can be easily removed from rigid ducting installations using the specially designed construction.
SKU | MANR-MF150T |
---|---|
Manufacturer Part Code | MF150T |
Product Range | Mixflo |
Material | Plastic |
Colour | Black |
Shape | Circular |
Depth (mm) | 252.00 mm |
Width (mm) | 226.00 mm |
Voltage | 220-240V |
Air Extraction Rate m3/h | 500 M3/h |
Number of speeds | 3 |
Maximum Speed | 2400 rpm |
Impeller Diameter | 150 mm |
Number of Phases | Single |
Maximum Sound Pressure Level | 35 Db |
Frequency | 50 Hz |
Cased | Yes |
c/w Timer | Yes |
c/w Duct | No |
c/w Light | No |
CE Approved | Yes |
Length (mm) | 307.00 mm |
Is on Sale | No |
Brand | Mixflo | |
Fans | Description | Product | Fan | |
Fans | Description | Product Type | Standard Industrial Inline Induct | |
Fans | Dimensions | Overall Length | 307 mm | |
Fans | Features | Air Extraction Rate m3/h | 500 M3/h | |
Fans | Features | Ingress Protection | IPX4 | |
Fans | Features | Maximum Standard Air Supply | 40 Degrees C | |
Fans | Features | Motor Power | 42|48 W | |
Fans | Features | Mounting | In-line | |
Fans | Features | Number of Speeds | 3 | |
Fans | Features | Reversible | N | |
Fans | Features | Use | MixFlo fans can be mounted in a variety of applications and are suitable for use with either rigid or flexible ducting. | |
Fans | Features | c/w Duct | N | |
Fans | Features | c/w Light | N | |
Fans | Features | c/w Timer | Y | |
Fans | General | CE Approved | Y | |
Fans | Material & Finish | Body Colour | Black | |
Fans | Technical Data | Frequency | 50 Hz | |
Fans | Technical Data | Maximum Sound Pressure Level | 35 Db | |
Fans | Technical Data | Maximum Speed | 2400 rpm | |
Fans | Technical Data | Number of Phases | Single | |
Fans | Technical Data | Voltage | 220-240 V |
