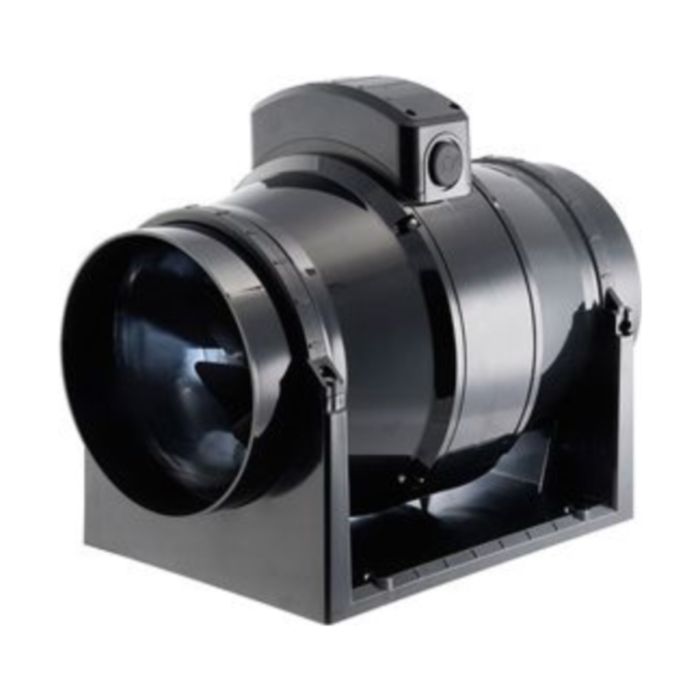

Manrose MF200T 200mm In-line Mixed Flow Extractor Fan c/w Timer
These powerful in-duct mounted mixed flow fans have been designed to produce higher working pressures for applications that require high air flows, with low relative noise.
- High quality ball bearing, long life motors, continuously rated and warranted for a minimum of 30,000 hours or 3 years
- High air flows are achieved through flexible duct
- Compact overall dimensions
- All models 3 speed settings selected via internal dip switch
- Double Insulation – no earth required
- Fully Building Code compliant
- Fully BEAB approved rated to IPX4
- Easy installation and maintenance with the fan assembly easily removed from rigid ducting installations using the specially designed construction
Estimated delivery 3-5 Working days
SKU
MANR-MF200T
£116.24 £139.49
Product Downloads
Product Categories
Manrose MF200T Inline Induct Fan & Timer
| SKU | MANR-MF200T |
|---|---|
| Manufacturer Part Code | MF200T |
| Product Range | Mixflo |
| Material | Plastic |
| Colour | Black |
| Shape | Circular |
| Depth (mm) | 275.00 mm |
| Width (mm) | 250.00 mm |
| Voltage | 220-240V |
| Air Extraction Rate m3/h | 855 M3/h |
| Number of speeds | 3 |
| Maximum Speed | 2750 rpm |
| Impeller Diameter | 200 mm |
| Number of Phases | Single |
| Maximum Sound Pressure Level | 48 Db |
| Frequency | 50 Hz |
| Cased | Yes |
| c/w Timer | Yes |
| c/w Duct | No |
| c/w Light | No |
| CE Approved | Yes |
| Length (mm) | 300.00 mm |
| Is on Sale | No |
| Brand | Mixflo | |
| Fans | Description | Product | Fan | |
| Fans | Description | Product Type | Standard Industrial Inline Induct | |
| Fans | Dimensions | Overall Length | 300 mm | |
| Fans | Features | Air Extraction Rate m3/h | 855 M3/h | |
| Fans | Features | Ingress Protection | IPX4 | |
| Fans | Features | Maximum Standard Air Supply | 40 Degrees C | |
| Fans | Features | Motor Power | 110|120 W | |
| Fans | Features | Mounting | In-line | |
| Fans | Features | Number of Speeds | 3 | |
| Fans | Features | Reversible | N | |
| Fans | Features | Use | MixFlo fans can be mounted in a variety of applications and are suitable for use with either rigid or flexible ducting. | |
| Fans | Features | c/w Duct | N | |
| Fans | Features | c/w Light | N | |
| Fans | Features | c/w Timer | Y | |
| Fans | General | CE Approved | Y | |
| Fans | Material & Finish | Body Colour | Black | |
| Fans | Technical Data | Frequency | 50 Hz | |
| Fans | Technical Data | Maximum Sound Pressure Level | 48 Db | |
| Fans | Technical Data | Maximum Speed | 2750 rpm | |
| Fans | Technical Data | Number of Phases | Single | |
| Fans | Technical Data | Voltage | 220-240 V |
