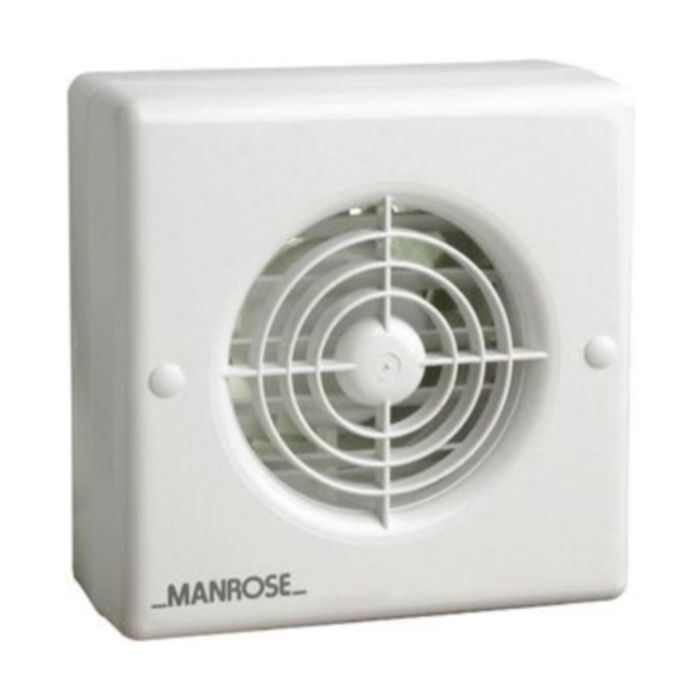

Manrose 100mm Automatic Extractor Fan c/w Electronic Timer
- Designed for wall, ceiling or window mounting, the Automatic extractor fan range is available in ten options, all incorporating thermo-activated internal shutters behind the interior grille which open silently approximately 45 seconds after the fan is switched on.
- The range is available in three sizes – 100mm (4″), 120mm (5″) and 150mm (6″).
- The extract rate of the 100mm series is 85m³/hr, 23 litres per second, whilst the 120mm units for larger bathrooms, toilets and utility rooms are 56% more powerful with an impressive extract rate of 130m³/hr, 36 litres per second. The largest fan in this range, the 150mm (6″), has a maximum performance of 230m³/hr, 64 litres per second.
- Power is provided by a single phase induction motor with pre-oiled bearings for a maintenance-free life.
- The units are all manufactured using high gloss ABS thermoplastics for strength and durability, aesthetics and easy cleaning.
- Designed to exceed the Building Regulations on Ventilation (F1).
Estimated delivery 3-5 Working days
SKU
MANR-XF100AT
£53.18 £63.82
Product Downloads
Product Categories
Related Products
Domus 100mm Straight Pipe Connector c/w DamperSKU: DMS-494£7.33 £8.80
Stock available Next working day
Domus 100mm Louvred Grille Brown c/w Flyscreen & Round SpigotSKU: DMS-F4904B£4.22 £5.06
Stock available Next working day
Click Mode CMA020 10A 3 Pole Fan Isolation Plate SwitchSKU: SCOL-CMA020£4.38 £5.26
Stock available Next working day
Hager WMPS3PIF Sollysta 1 Gang 10A TP Fan Isolator Switch White c/w Fan SymbolSKU: HG-WMPS3PIF£3.69 £4.43
Stock available Next working day
Domus 100mm Gravity Flap Wall Outlet TerracottaSKU: DMS-4900T£3.59 £4.31
Stock available Next working day
Domus 100mm Gravity Flap Wall Outlet WhiteSKU: DMS-4900W£2.53 £3.04
Stock available Next working day
Domus 1100-4 Pipe Standard Round Ducting 100mm x 1mSKU: DMS-1100-4£7.01 £8.41
Stock available Next working day
Domus Plastic Ventilation Duct Sealant 310mlSKU: DMS-DDSEAL£13.27 £15.92
Stock available Next working day
Domus 100mm Louvred Grille White c/w Flyscreen & Round SpigotSKU: DMS-F4904W£4.22 £5.06
Stock available Next working day
Click PRW208 10A 3 Pole Fan Isolation Pull Cord SwitchSKU: SCOL-PRW208£9.47 £11.36
Stock available Next working day
Domus 100mm Gravity Flap Wall Outlet BlackSKU: DMS-44900BK£5.68 £6.82
Stock available Next working day
Domus 100mm Gravity Flap Wall Outlet BrownSKU: DMS-4900B£2.53 £3.04
Stock available Next working day
Hager WMCS3PIF Sollysta 10A Ceiling Switch TP Marked Fan & Isolator WhiteSKU: HG-WMCS3PIF£12.50 £15.00
Stock available Next working day
Domus 100mm Louvred Grille Wall Outlet BlackSKU: DMS-4904BK£3.30 £3.96
Stock available Next working day
| SKU | MANR-XF100AT |
|---|---|
| Manufacturer Part Code | XF100AT |
| Material | ABS Thermoplastic |
| Depth (mm) | 108.00 mm |
| Air Extraction Rate m3/h | 85 M3/h |
| Maximum Sound Pressure Level | 41 Db |
| Maximum Speed | 2400 rpm |
| Shape | Square |
| c/w Timer | Yes |
| Frequency | 50 Hz |
| Number of Phases | Single |
| Impeller Diameter | 100 mm |
| Mounting Method | Wall |
| Width (mm) | 163.00 mm |
| Is on Sale | No |
| Fans | Description | Product | Fan | |
| Fans | Description | Product Type | Wall/Ceiling Electronic Timer | |
| Fans | Description | Type | bathrom | |
| Fans | Dimensions | Overall Length | 163 mm | |
| Fans | Dimensions | Overall Width | 163 mm | |
| Fans | Features | Air Extraction Rate m3/h | 85 M3/h | |
| Fans | Features | Maximum Standard Air Supply | 40 Degrees C | |
| Fans | Features | Motor Power | 20 W | |
| Fans | Features | Mounting | Wall | |
| Fans | Features | Use | Domestic | |
| Fans | Features | c/w Timer | Y | |
| Fans | Technical Data | Frequency | 50 Hz | |
| Fans | Technical Data | Maximum Sound Pressure Level | 41 Db | |
| Fans | Technical Data | Maximum Speed | 2400 rpm | |
| Fans | Technical Data | Number of Phases | Single |
