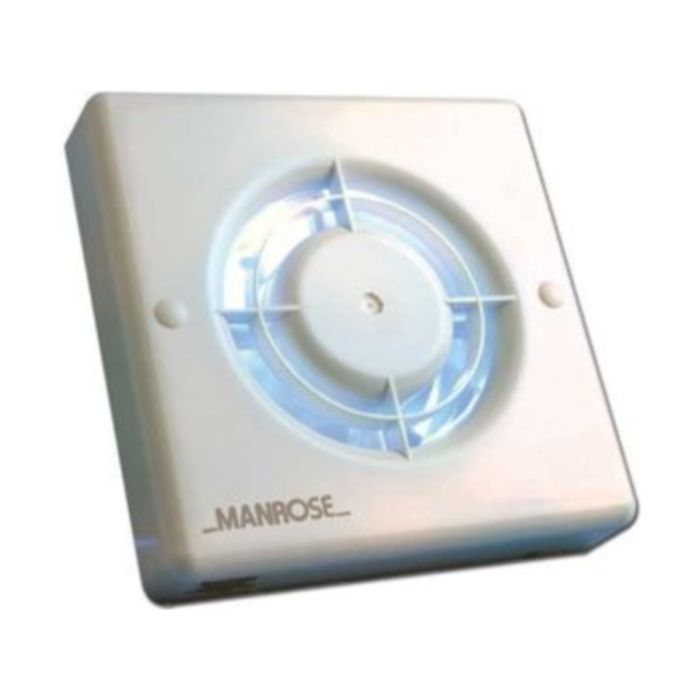

Manrose 100mm Extractor Fan Humidity Control

Designed for wall, ceiling or window mounting, this comprehensive range offers a wide selection of models for use in bathrooms and toilets.
Quiet and efficient, the 100mm (4″) series has an impressive extract rate of 85m³/hr, 23 litres per second, and is available in the eleven options detailed opposite.
The units are all manufactured using high gloss ABS thermoplastics for strength and durability, aesthetics and easy cleaning.
Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance- free life.
Designed to comply with the Building Regulations on Ventilation (F1).

Estimated delivery 3-5 Working days

SKU

MANR-XF100H

£40.68 £48.82

Product Categories

More Information
SKU	MANR-XF100H
Manufacturer Part Code	XF100H
Material	ABS Thermoplastic
Depth (mm)	75.00 mm
Air Extraction Rate m3/h	85 M3/h
Maximum Sound Pressure Level	41 Db
Maximum Speed	2400 rpm
Shape	Square
c/w Timer	Yes
Frequency	50 Hz
Number of Phases	Single
Impeller Diameter	100 mm
Mounting Method	Wall
Width (mm)	163.00 mm
Is on Sale	No

Fans \| Description \| Product	Fan
Fans \| Description \| Product Type	Wall/Ceiling Humidity Control
Fans \| Description \| Type	Humidity
Fans \| Dimensions \| Overall Length	163 mm
Fans \| Dimensions \| Overall Width	163 mm
Fans \| Features \| Air Extraction Rate m3/h	85 M3/h
Fans \| Features \| Maximum Standard Air Supply	40 Degrees C
Fans \| Features \| Motor Power	15 W
Fans \| Features \| Mounting	Wall
Fans \| Features \| Number of Poles	2P
Fans \| Features \| Use	Domestic
Fans \| Features \| c/w Timer	Y
Fans \| Technical Data \| Frequency	50 Hz
Fans \| Technical Data \| Maximum Sound Pressure Level	41 Db
Fans \| Technical Data \| Maximum Speed	2400 rpm
Fans \| Technical Data \| Number of Phases	Single
