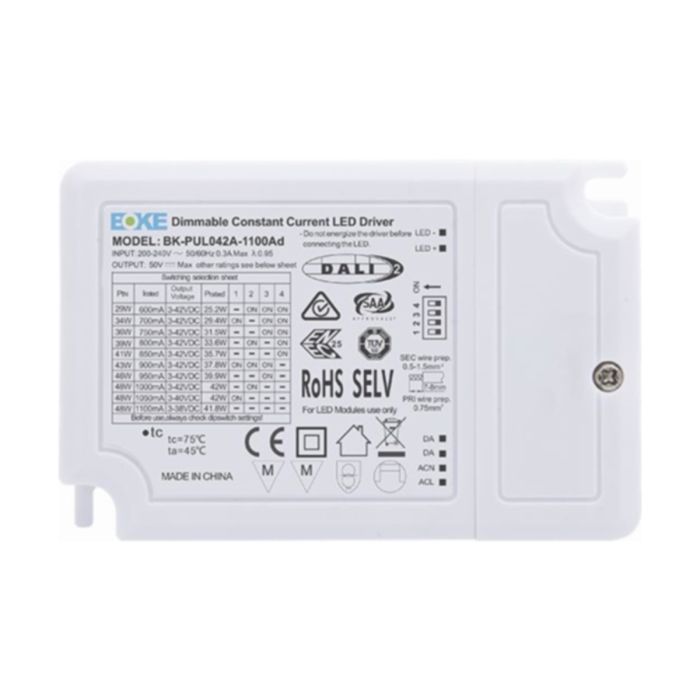

Ovia DIMMABLE CONTROL GEAR 29-48W 3 in 1 Multi-function Dimmable Constant Current LED Driver - White

240V~ 29-48W 3 in 1 Multi-function Dimmable Constant Current LED Driver Ideal for may Appilcation This Prodcut is suit for many Application to change an existing Driver to Dimmable (Not Direct DimP Check the Current (Ma) Matches and the Wattage is within Range

General Information Dimensions 103mm (L) x 68mm (W) x 30mm (D)

Materials Housing: Polycarbonate Finish White Product Weight 0.195Kg

Dimmable Yes (DALI,

Switch Dim,

1-10V, 10V PWM)

Ingress Protection IP20

Rated Power 29W-48W DC Voltage Range 3-42V 16A Circuit Breaker (B Curve - 25 Units) @ 230V~, (C Curve - 32 Units) @ 230V~ Constant Current ADJ Range DIP Switches Ambient Temperature (Ta) -20°C - +45°C Critical Temperature +75°C Turn On Delay <0.5 Seconds @ 230V~ Input Terminations Push-fit Terminals Dimming Facility Control Type Switch Dim Using Retractive Switch(es) Switch Dim Voltage 230V~ input to driver Control Arrangement Short Press: ON / OFF; Press & Hold: DIM Control Type 1-10V / 10V PWM Dimming 1-10V Parameters Upto 16 drivers with 20 metres maximum between drivers 1-10V Dimming Information An additional isolation switch will be required to turn the driver On and Off Control Type DALI DALI Control Line Voltage 9.5V to 22.5V Connectable Driver Up To 64 Drivers To One DALI Control Line Control Line Length (Max.) 100M Max. - 2 x 0.50mm² 150M Max. - 2 x 0.75mm² 200M Max. - 2 x 1.00mm² 300M Max. - 2 x 1.50mm²
