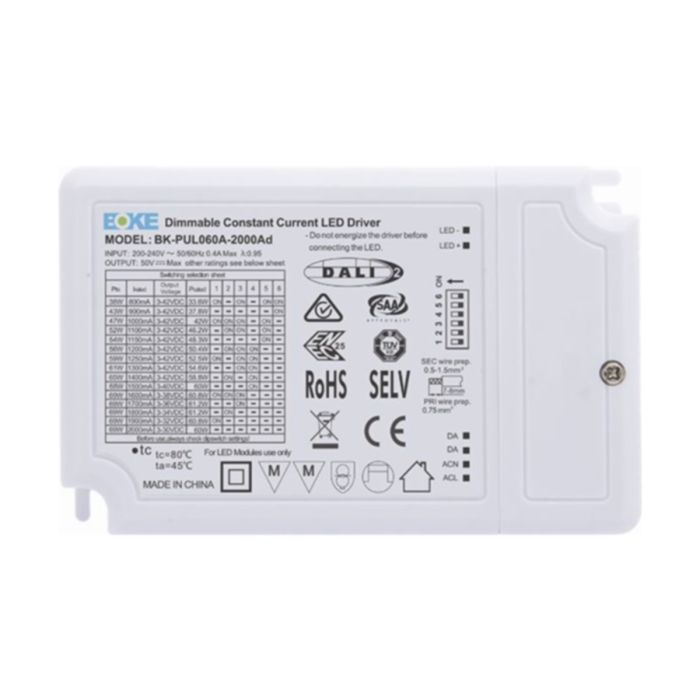

Ovia DIMMABLE CONTROL GEAR 38-69W 3 in 1 Multi-function Dimmable Constant Current LED Driver - White
Ovia® offers a versatile range of commercial lighting solutions, including panel lighting and downlights with various features. Installation options include recessed, surface, or suspended methods. The comprehensive lineup caters to diverse requirements, from cost-effective to high-spec solutions, featuring different color temperatures and IP ratings. Some products include pre-wired Push-Fit Flow„¢ connectors for quick installation, and emergency versions are available within the extensive range.
- Universal DALI dimmable LED driver
- Suitable for OVIA LED panels
- DALI, 1-10V & switch dimmable
- Push-fit terminals
Stock available Next working day
SKU
OVIA-OVCGMF0002
£40.02 £48.02
Product Categories
Ovia OVCGMF0002 LED Driver 240V 38-69WGeneral Information
Dimensions 123mm (L) x 79mm (W) x 31mm (D)
Materials Housing: Polycarbonate
Finish White
Product Weight 0.275Kg
Dimmable Yes (DALI, Switch Dim, 1-10V, 10V PWM)
Ingress Protection IP20
Compatible Fittings OV75303CW (INCEPTOR SLATE 50W Panel)
Warranty 5 Years
Supply & Power
Input Voltage & Frequency 200-240V~ 50/60Hz
Electrical Safety Class II (Double Insulated)
Rated Power 38W-69W
DC Voltage Range 3-42V
16A Circuit Breaker (B Curve - 25 Units) @ 230V~, (C Curve - 32 Units) @ 230V~
Constant Current ADJ Range DIP Switches
Ambient Temperature (Ta) -20°C - +45°C
Critical Temperature +80°C
Turn On Delay <0.5 Seconds @ 230V~
Input Terminations Push-fit Terminals
Dimming Facility
Control Type Switch Dim Using Retractive Switch(es)
Switch Dim Voltage 230V~ input to driver
Control Arrangement Short Press: ON / OFF; Press & Hold: DIM
Control Type 1-10V / 10V PWM Dimming
1-10V Parameters Upto 16 drivers with 20 metres maximum between drivers
1-10V Dimming Information An additional isolation switch will be required to turn the driver On and Off
Control Type DALI
DALI Control Line Voltage 9.5V to 22.5V
Connectable Driver Up To 64 Drivers To One DALI Control Line
Control Line Length (Max.) 100M Max. - 2 x 0.50mm²
150M Max. - 2 x 0.75mm²
200M Max. - 2 x 1.00mm²
300M Max. - 2 x 1.50mm²
SKU | OVIA-OVCGMF0002 |
---|---|
Manufacturer Part Code | OVCGMF0002 |
Warranty | 5 Years |
Product Range | Controls |
Material | Polycarbonate PC |
Colour | White |
Ingress Protection | IP20 |
Mounting Method | Surface |
Depth (mm) | 31.00 mm |
Width (mm) | 79.00 mm |
Height (mm) | 123.00 mm |
Wattage | 61.2W |
Voltage | 220-240V |
Dimmable | Yes |
Is on Sale | No |
Brand | Controls | |
Transformers Drivers Ballasts | Description | Primary Voltage | 220-240 V | |
Transformers Drivers Ballasts | Description | Product | Driver | |
Transformers Drivers Ballasts | Description | Product Type | LED Universal Multi-Function | |
Transformers Drivers Ballasts | Description | Qualifier | Dimmable | |
Transformers Drivers Ballasts | Description | Secondary Current | 1 A | |
Transformers Drivers Ballasts | Description | Secondary Voltage Type | DC | |
Transformers Drivers Ballasts | Description | Secondary Voltage | 3 - 42 V | |
Transformers Drivers Ballasts | Dimensions | Depth (EF008810) | 30 mm | |
Transformers Drivers Ballasts | Features | Connection Type (EF000124) | Quick Connect Terminal | |
Transformers Drivers Ballasts | Features | Dimmable | Y | |
Transformers Drivers Ballasts | Features | Ingress Protection (EF005474) | IP20 | |
Transformers Drivers Ballasts | Features | Mounting (EF000003) | Surface | |
Transformers Drivers Ballasts | Features | Wattage | 42 W | |
Transformers Drivers Ballasts | General | CE Approved | N | |
Transformers Drivers Ballasts | General | Standards | BS EN 61347-2-13; BS EN 55015; BS EN 61547; BS EN 61000-3-2; BS EN 61000-3-3; BS EN 62386-101 | |
Transformers Drivers Ballasts | General | Unit Weight | 0.195 kg | |
Transformers Drivers Ballasts | General | Warranty | 5 Years | |
Transformers Drivers Ballasts | Material & Finish | Colour (EF000007) | White | |
Transformers Drivers Ballasts | Material & Finish | Material (EF001257) | Polycarbonate PC | |
Transformers Drivers Ballasts | Technical Data | Frequency | 50/60 Hz | |
Transformers Drivers Ballasts | Technical Data | Maximum Operating Temperature | +45 Degrees C | |
Transformers Drivers Ballasts | Technical Data | Minimum Operating Temperature | -20 Degrees C | |
Transformers Drivers Ballasts | Technical Data | Number of Phases | Single |
