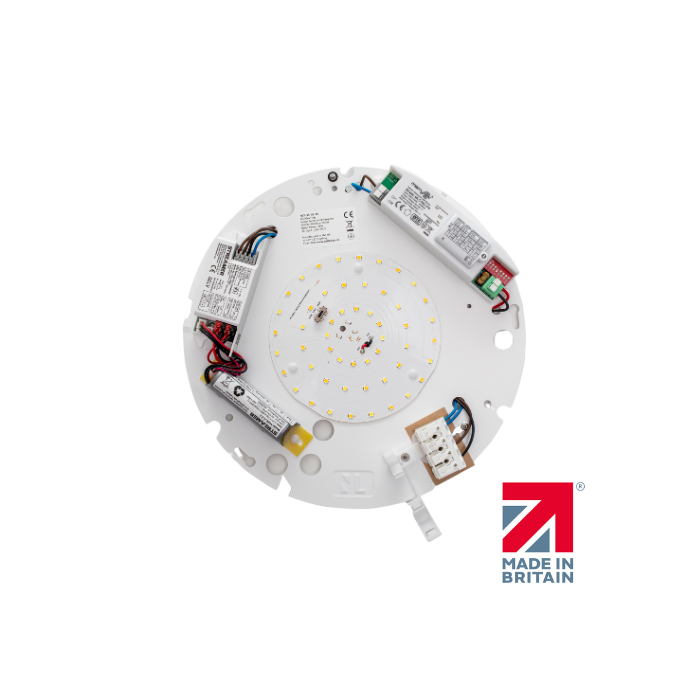

NET LED NET-33-06-36 Duxford Retrofit Gear Tray Multi-Wattage Tri-Colour Microwave Sensor Emergency/Self Test
- Detection range from 2m to 10m
- Hold time from 5 seconds to 10 minutes
- Daylight threshold
- Corridor function 0% or 10%
- Manual or self test selectable emergency operation
- Selectable 3000K, 4000K or 5500K colour temperature
- Multiple mounting points for retro fit into existing housings
- Push connector installation
This option comes equipped with an integral microwave sensor, designed to detect motion and adjust the light accordingly with 0% or 10% Standby options. When an area is unoccupied, the sensor dims the light, reducing energy consumption. As soon as movement is detected, the Gear Tray instantly brightens up, ensuring that light is available precisely when and where it’s needed.
It also comes with a 3 Hour Emergency function, adding an extra layer of safety and convenience. During power outages or emergencies, the Gear Tray seamlessly transitions into emergency mode, providing reliable lighting for up to three hours.
Say goodbye to time-consuming and costly replacements.
The Duxford Gear Tray is engineered for swift and simple retrofitting into any existing bulkhead housing with its multiple mounting points, reducing installation time and minimising disruption.
Tailor the lighting experience to your clients’ specific needs. With selectable colour temperature options of 3000K, 4000K or 5500K, our Gear Trays allow you to create the perfect ambiance for any environment, whether it’s warm and inviting or crisp and focused.
Key Features
- Detection range from 2m to 10m
- Hold time from 5 seconds to 10 minutes
- Daylight threshold
- Corridor function 0% or 10%
- Manual or self test selectable emergency operation
- Selectable 3000K, 4000K or 5500K colour temperature
- Multiple mounting points for retro fit into existing housings
- Push connector installation
Input Voltage Ac | 220-240V |
Power Factor | >0.9 |
Luminaire Efficacy | 100lm/W |
LED Manufacturer | Jingrui |
LED Type | SMD 2835 |
No. of LEDs | 52 |
Total Circuit Power | 16W |
Electrical Class | 1 |
Colour Rendering | >80 CRI |
Lamp Viewing Angle | 115° |
Dimmable | No |
Operating Temp. | 0°C to +45°C |
Lifespan LM80 | 35,000 Hours |
UGR Rating | More than 19 |
Weight | 0.54Kg |
Battery Pack | Li-on 3.7V |
Driver Output Voltage | 36-42V |
Manufacturer | NET LED Lighting |
Luminous Flux Factor | 5% |
Self Test | Selectable |
Emergency Kit | 1 Year Warranty |
Emergency Operation | >3H |
Emergency Pack | Streamer |
Sensor Ip Rating | IP20 |
Standby Dimming Level | 0% / 10% |
Corridor Function | Yes |
SKU | NET-33-06-36 |
---|---|
Manufacturer Part Code | NET-33-06-36 |
Warranty | 3 Years |
Product Range | Duxford |
Product Finish | White Powder Coated |
Lamp Type | Gear Tray |
Lamp Style | Gear Tray |
Wattage | 16W |
Voltage | 220-240V |
Colour Temperature | 5500K,3000K |
Colour Rendering Index | >80 |
Beam Angle | 115 Degrees |
Light Output | 16,501,900.00 lm |
Luminous Efficiency | 118.00 lm/W |
Lifetime (hrs) | 35000Hrs |
Dimmable | No |
Depth (mm) | 23.60 mm |
Is on Sale | No |
Brand | Yaxley | |
Luminaires | Description | Face Shape | Circular | |
Luminaires | Description | Product | Bulkhead | |
Luminaires | Description | Product Type | Circular LED Tri-Colour MOTION | |
Luminaires | Description | Product | Luminaire | |
Luminaires | Description | Type | Bulkhead | |
Luminaires | Dimensions | Depth (EF008810) | 92 mm | |
Luminaires | Dimensions | Overall Diameter | 470 mm | |
Luminaires | Features | Adjustability | Fixed | |
Luminaires | Features | Ballast/Starter Included | N | |
Luminaires | Features | Corrosion Resistant | N | |
Luminaires | Features | Cover Included | Y | |
Luminaires | Features | Cover Type | Diffuser | |
Luminaires | Features | Dimmable | N | |
Luminaires | Features | Ingress Protection (EF005474) | IP65 | |
Luminaires | Features | Lamp(s) Included? | Y | |
Luminaires | Features | Microwave Sensor Included | Y | |
Luminaires | Features | PIR Included | N | |
Luminaires | Features | Self-Contained | N | |
Luminaires | Features | Vandal Resistant | N | |
Luminaires | Features | Wattage | 14|20 W | |
Luminaires | General | Unit Weight | 2.01 kg | |
Luminaires | General | Warranty | 5 Years | |
Luminaires | Material & Finish | Cover Material | Polycarbonate | |
Luminaires | Material & Finish | Housing Colour | White | |
Luminaires | Material & Finish | Housing Material | Polycarbonate | |
Luminaires | Technical Data | Light Output | 1440|2000 Lm | |
Luminaires | Technical Data | Luminous Efficiency | 100 Lm/W | |
Luminaires | Technical Data | Voltage | 220-240 V |
