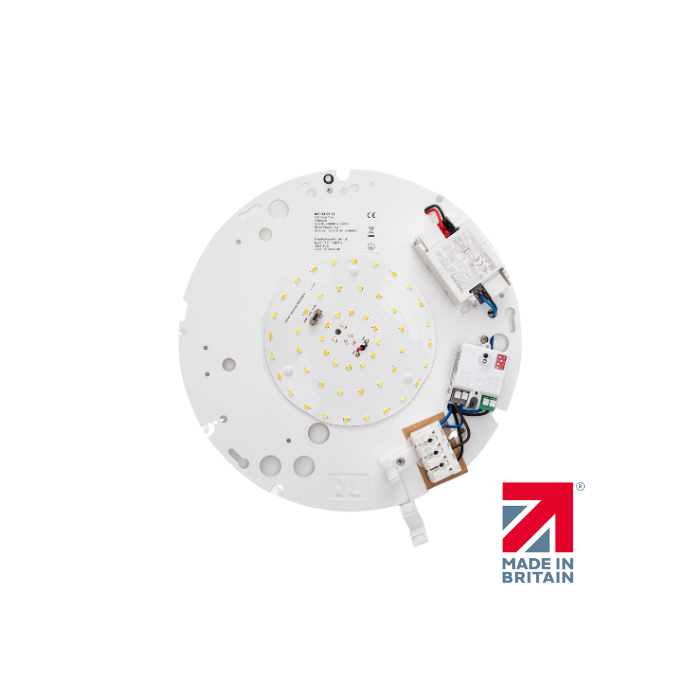

NET LED NET-33-06-72 Duxford Retrofit Gear Tray Multi-Wattage Tri-Colour Photocell
- Dusk to dawn function
- Choose between 12W, 14W, 16W or 18W at the time of installation
- Selectable 3000K, 4000K or 5500K colour temperature
- Multiple mounting points for retro fit into existing housings
- Push connector installation
Estimated delivery 1-2 Working days
SKU
NET-33-06-72
£53.10 £63.72
Product Downloads
Product Categories
This option comes equipped with an integral photocell sensor, automatically detecting the ambient light levels and adjusting the light accordingly. This feature ensures that your lighting operates efficiently, turning on at dusk and off at dawn, reducing energy waste.
Say goodbye to time-consuming and costly replacements.
The Duxford Gear Tray is engineered for swift and simple retrofitting into any existing bulkhead housing with its multiple mounting points, reducing installation time and minimising disruption.
Tailor the lighting experience to your clients’ specific needs. With selectable colour temperature options of 3000K, 4000K or 5500K, our Gear Trays allow you to create the perfect ambiance for any environment, whether it’s warm and inviting or crisp and focused.
Key Features
- Dusk to dawn function
- Choose between 12W, 14W, 16W or 18W at the time of installation
- Selectable 3000K, 4000K or 5500K colour temperature
- Multiple mounting points for retro fit into existing housings
- Push connector installation
| Input Voltage Ac | 220-240V |
| Power Factor | >0.9 |
| Luminaire Efficacy | 100lm/W |
| LED Manufacturer | Jingrui |
| LED Type | SMD 2835 |
| No. of LEDs | 52 |
| Total Circuit Power | 12W/14W/16W/18W |
| Electrical Class | 1 |
| Colour Rendering | >80 CRI |
| Lamp Viewing Angle | 115° |
| Dimmable | No |
| Operating Temp. | -15°C to +45°C |
| Lifespan LM80 | 35,000 Hours |
| UGR Rating | More than 19 |
| Weight | 0.54Kg |
| Driver Output Voltage | 36-42V |
| Manufacturer | NET LED Lighting |
| Lux Levels | 5lux - 400lux |
| SKU | NET-33-06-72 |
|---|---|
| Manufacturer Part Code | NET-33-06-72 |
| Warranty | 3 Years |
| Product Range | Duxford |
| Product Finish | White Powder Coated |
| Lamp Type | Gear Tray |
| Lamp Style | Gear Tray |
| Wattage | 16W |
| Voltage | 220-240V |
| Colour Temperature | 5500K,3000K |
| Colour Rendering Index | >80 |
| Beam Angle | 115 Degrees |
| Light Output | 16,501,900.00 lm |
| Luminous Efficiency | 118.00 lm/W |
| Lifetime (hrs) | 35000Hrs |
| Dimmable | No |
| Depth (mm) | 23.60 mm |
| Is on Sale | No |
| Brand | Duxford | |
| Luminaires | Description | Product | Bulkhead | |
| Luminaires | Description | Product Type | Circular 2D LED Tri-Colour Emer | |
| Luminaires | Description | Product | Luminaire | |
| Luminaires | Description | Type | Bulkhead | |
| Luminaires | Dimensions | Depth (EF008810) | 110 mm | |
| Luminaires | Dimensions | Overall Diameter | 325 mm | |
| Luminaires | Features | Adjustability | Fixed | |
| Luminaires | Features | Ballast/Starter Included | N | |
| Luminaires | Features | Corrosion Resistant | N | |
| Luminaires | Features | Cover Included | Y | |
| Luminaires | Features | Cover Type | Diffuser | |
| Luminaires | Features | Dimmable | N | |
| Luminaires | Features | Emergency Duration | 3 Hours | |
| Luminaires | Features | Ingress Protection (EF005474) | IP65 | |
| Luminaires | Features | Lamp(s) Included? | Y | |
| Luminaires | Features | Microwave Sensor Included | N | |
| Luminaires | Features | PIR Included | N | |
| Luminaires | Features | Self-Contained | Y | |
| Luminaires | Features | Vandal Resistant | N | |
| Luminaires | Features | Wattage | 16 W | |
| Luminaires | General | Unit Weight | 1.13 kg | |
| Luminaires | General | Warranty | 3 Years | |
| Luminaires | Material & Finish | Cover Material | Polycarbonate | |
| Luminaires | Material & Finish | Housing Colour | White | |
| Luminaires | Material & Finish | Housing Material | Polycarbonate | |
| Luminaires | Technical Data | Light Output | 1300|1550 Lm | |
| Luminaires | Technical Data | Luminous Efficiency | 96 Lm/W | |
| Luminaires | Technical Data | Voltage | 220-240 V |
