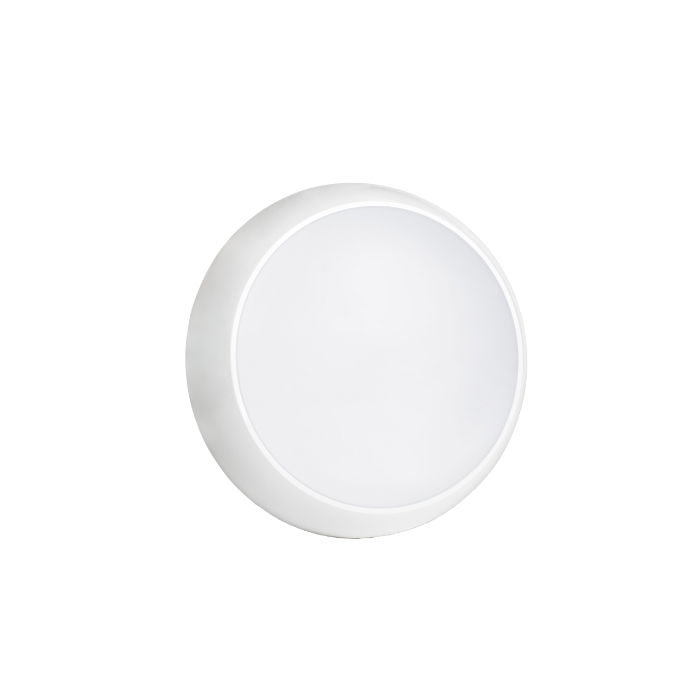

NET LED NET-33-06-40 Duxford Bulkhead Multi-Wattage 4000K IP65 Standard
A standard white, polycarbonate Bulkhead with water and dust resistant housing and single colour temperature
Proudly manufactured in the UK
- Choose between 12W, 14W, 16W or 18W at the time of installation
- Single colour temperature 4000K
- IP65 rated housing
- Shatterproof all-polycarbonate diffuser
- Suitable for BESA Box installation
- Push connector installation
Estimated delivery 1-2 Working days
SKU
NET-33-06-40
£28.68 £34.42
Product Downloads
Product Categories
Related Products
NET LED NET-33-06-44 Duxford Bulkhead Multi-Wattage 4000K IP65 Microwave SensorSKU: NET-33-06-44£43.16 £51.79
Estimated delivery 1-2 Working days
NET LED NET-33-06-72 Duxford Retrofit Gear Tray Multi-Wattage Tri-Colour PhotocellSKU: NET-33-06-72£53.10 £63.72
Estimated delivery 1-2 Working days- NET LED NET-33-06-70 Duxford Bulkhead Multi-Wattage Tri-Colour IP65 PhotocellSKU: NET-33-06-70£45.02 £54.02
Estimated delivery 1-2 Working days
NET LED NET-33-06-32 Duxford Retrofit Gear Tray Multi-Wattage Tri-Colour Emergency/Self TestSKU: NET-33-06-32£36.26 £43.51
Estimated delivery 1-2 Working days
The Duxford Bulkhead boasts an IP65 rated housing, making it resistant to dust and water ingress. This ensures durability and reliability, even in challenging environments, making it suitable for both indoor and outdoor installations.
The three rear entry positions offer flexibility when it comes to cable entry, accomodating various installation scenarios with ease. Adding to its adaptability, the fitting is also compatible with BESA Box installation.
Key Features
- Choose between 12W, 14W, 16W or 18W at the time of installation
- Single colour temperature 4000K
- IP65 rated housing
- Shatterproof all-polycarbonate diffuser
- Suitable for BESA Box installation
- Push connector installation
| Input Voltage Ac | 220-240V |
| Power Factor | >0.9 |
| Luminaire Efficacy | 100lm/W |
| LED Manufacturer | Jingrui |
| LED Type | SMD 2835 |
| No. of LEDs | 52 |
| Total Circuit Power | 12W/14W/16W/18W |
| Electrical Class | 1 |
| Colour Rendering | >80 CRI |
| Lamp Viewing Angle | 115° |
| Dimmable | No |
| Operating Temp. | -15°C to +45°C |
| Lifespan LM80 | 35,000 Hours |
| UGR Rating | More than 19 |
| Housing Material | Polycarbonate |
| Weight | 1.13Kg |
| Driver Output Voltage | 36-42V |
| Housing Colour | White |
| Diffuser Material | Polycarbonate |
| Fire Rating | V2 |
| Manufacturer | NET LED Lighting |
| SKU | NET-33-06-40 |
|---|---|
| Manufacturer Part Code | NET-33-06-40 |
| Warranty | 3 Years |
| Product Range | Duxford |
| Product Finish | White Polycarbonate |
| Material | Polycarbonate |
| Colour | White |
| Mounting Position | Surface |
| Ingress Protection | IP65 |
| Depth (mm) | 110.00 mm |
| Overall Diameter (mm) | 325.00 mm |
| Voltage | 220-240V |
| Wattage | 15W |
| Colour Temperature | 4000K |
| Colour Rendering Index | >80 |
| Light Output | 1,550.00 lm |
| Luminous Efficiency | 105.00 lm/W |
| Beam Angle | 115 Degrees |
| LED Driver Included? | Yes |
| Emergency | No |
| Lamp Type | LED Fixed |
| Lamp(s) Included? | Yes |
| c/w Photocell? | No |
| PIR Included | No |
| c/w Microwave | No |
| Dimmable | No |
| Fire Rated | No |
| Cover Type | Diffuser |
| Cover Included | Yes |
| Adjustability | Fixed |
| Self-Contained | No |
| Vandal Resistant | No |
| Corrosion Resistant | No |
| Ballast/Starter Included | No |
| Cover material | Polycarbonate |
| Is on Sale | No |
| Brand | Yaxley | |
| Luminaires | Description | Face Shape | Circular | |
| Luminaires | Description | Product | Bulkhead | |
| Luminaires | Description | Product Type | Circular LED Tri-Colour DIMM EMER | |
| Luminaires | Description | Product | Luminaire | |
| Luminaires | Description | Type | Bulkhead | |
| Luminaires | Dimensions | Depth (EF008810) | 92 mm | |
| Luminaires | Dimensions | Overall Diameter | 470 mm | |
| Luminaires | Features | Adjustability | Fixed | |
| Luminaires | Features | Ballast/Starter Included | N | |
| Luminaires | Features | Corrosion Resistant | N | |
| Luminaires | Features | Cover Included | Y | |
| Luminaires | Features | Cover Type | Diffuser | |
| Luminaires | Features | Dimmable | Y | |
| Luminaires | Features | Emergency Duration | 3 Hours | |
| Luminaires | Features | Ingress Protection (EF005474) | IP65 | |
| Luminaires | Features | Lamp(s) Included? | Y | |
| Luminaires | Features | Microwave Sensor Included | N | |
| Luminaires | Features | PIR Included | N | |
| Luminaires | Features | Self-Contained | Y | |
| Luminaires | Features | Vandal Resistant | N | |
| Luminaires | Features | Wattage | 20 W | |
| Luminaires | General | Unit Weight | 2.01 kg | |
| Luminaires | General | Warranty | 5 Years | |
| Luminaires | Material & Finish | Cover Material | Polycarbonate | |
| Luminaires | Material & Finish | Housing Colour | White | |
| Luminaires | Material & Finish | Housing Material | Polycarbonate | |
| Luminaires | Technical Data | Light Output | 1900|2000 Lm | |
| Luminaires | Technical Data | Luminous Efficiency | 100 Lm/W | |
| Luminaires | Technical Data | Voltage | 220-240 V |
