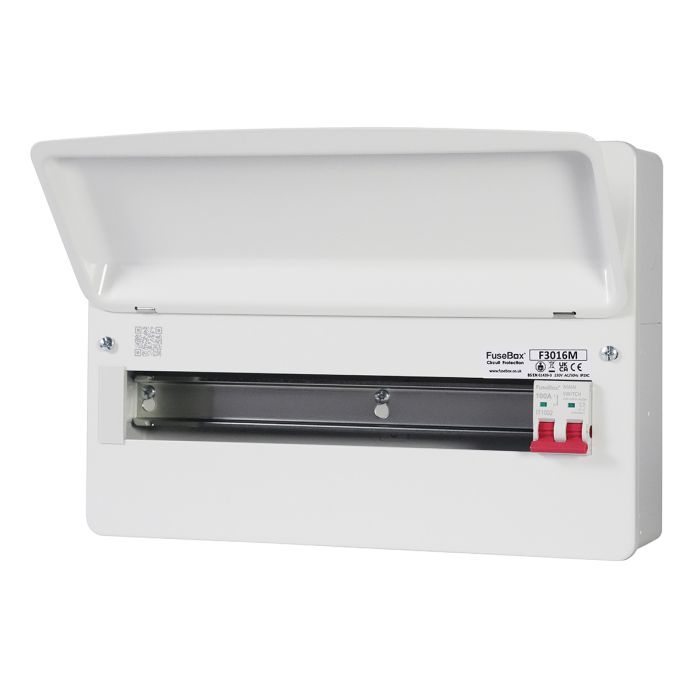

Fusebox F3016M 16 Way Main Switch Consumer Unit

The Fusebox F3016M 16 Way Main Switch Consumer Unit is the advanced replacement for the F2015M model, featuring a reinforced grommet strip for enhanced cable protection and an additional way to support more circuits. Designed for both professional electricians and homeowners, this consumer unit includes a dependable 100A main switch incomer to safely manage electrical loads.

Constructed from durable steel with a smooth white epoxy powder finish to RAL9003, the F3016M combines strength with a clean, modern appearance. It offers 16 usable ways, making it suitable for large residential or commercial electrical installations requiring expanded circuit capacity.

The unit supports a voltage of 230V/50Hz and a maximum load of 100A. Terminal capacities are designed to accommodate MS and RCD cables up to 35mm² and MCB and RCBO cables up to 16mm². It features a selection of conduit knockouts on all sides ranging from 25mm to 40mm, allowing flexible cable entry options.

Rated IP2XC and compliant with BS EN 61439-3 standards, the F3016M ensures safety, reliability, and compliance with the latest wiring regulations. Its dimensions are 263mm high, 378mm wide, and 116mm deep, providing ample space for installation without compromising compactness.

This consumer unit is the ideal upgrade from the F2015M, combining trusted features with new enhancements for improved performance and durability.
