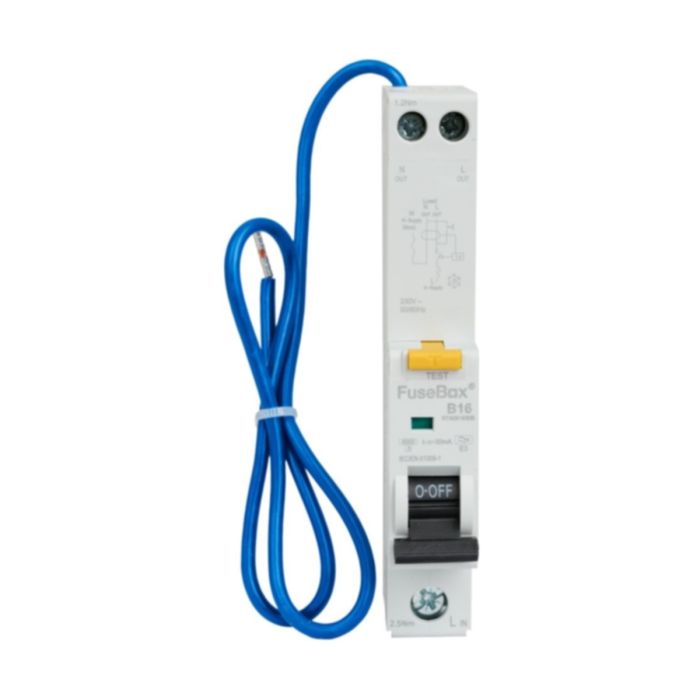

FuseBox RTA061630B 16A SPN RCBO Type A B Curve 30mA 6kA
The FuseBox RTA061630B RCBO is a Single Pole Neutral (SPN) Circuit Breaker with Overload protection. With a combination of Type A and B curve tripping characteristics, it can detect both AC and pulsating DC currents up to 6mA.
- 16A Rated
- B Curve
- 6kA
- Type A
- Single Pole
- Recommended tightening torque: 2.5Nm
- Number of poles: 1P + N
- Tripping characteristics: Type A (AC and pulsating DC up to 6mA)
The FuseBox RTA061630B is a Single Pole Neutral (SPN) Residual Current Circuit Breaker with Overload (RCBO) protection. B curve tripping characteristics, it can detect both AC and pulsating DC currents up to 6mA. Rated at 16A and 230V AC, it has a rated residual operating current of 30mA and a rated breaking capacity of 6kA.
The RCBO has a maximum terminal capacity of 1-16mm² L IN / 1-10mm² OUT N L and a recommended tightening torque of 2.5Nm L IN / 1.2Nm OUT N L. It has an IP20 protection degree, 10,000 mechanical endurance cycles, and a flying neutral cable length of 450mm. This RCBO is designed to be mounted on a 35mm din rail and is made of PA6 (Nylon 6).
SKU | FUSEB-RTA061630B |
---|---|
Manufacturer Part Code | RTA061630B |
Product Range | Edition 4 |
Current Rating | 16A |
Trip Type | Type B |
Short Circuit Rating | 6 kA |
Sensitivity | 30 mA |
Pole Configuration | 1P+N |
Voltage | 230V |
Mounting Method | DIN Rail |
Ingress Protection | IP20 |
Width (mm) | 18.00 mm |
Standards | BS EN 61009-1 |
Is on Sale | No |
Circuit Breakers | Description | Product | RCBO | |
Circuit Breakers | Description | Product Type | SPN Class A Type B | |
Circuit Breakers | Dimensions | Width (EF008808) | 18 mm | |
Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
Circuit Breakers | Features | Pole Configuration | SP+N | |
Circuit Breakers | Features | Sensitivity | 30 mA | |
Circuit Breakers | Features | Short Circuit Rating | 6 kA | |
Circuit Breakers | Features | Trip Type | Type B | |
Circuit Breakers | General | Standards | BS EN 61009-1 | |
Circuit Breakers | Technical Data | Current Rating (EF000227) | 16 A | |
Circuit Breakers | Technical Data | RCD Type/Class | A | |
Circuit Breakers | Technical Data | Voltage | 230 V |
