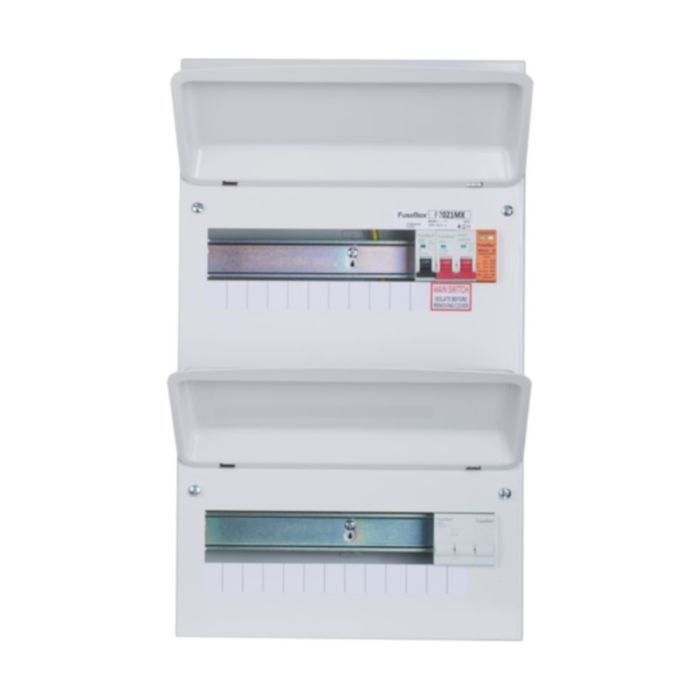

FuseBox F2021MX 21 Way Main Switch & T2 SPD Consumer Unit 10/11 Double Bank c/w Tail Clamp 100A

FuseBox F2021MX 21 Way Main Switch & T2 SPD Consumer Unit 10/11 Double Bank c/w Tail Clamp 100A

FUSEB-F2021MX

SELL PACK QTY: 1

Dimensions (HxWxD)mm: 512x306x113
T2 surge protection
Earth and neutral terminal bars at the top
Removable and raised DIN rail
Round knock-outs on all faces
Extra height for RCBOs
1mm electro-galvanised steel (zinc)
RAL 9001 powder-coated fi nish
Tail clamp (ACCF)
Circuit identification labels
Captive screws on front cover
IP20XC
BS EN61439-3

Stock available

Next working day

Excl. VAT: £127.50 Incl. VAT: £153.00

FuseBox F2021MX 21 Way Main Switch & T2 SPD Consumer Unit Made with 100A double bank c/w tail clamp and accessory pack.

Choose RCBOs with this board

SKU	Name	Amps	Curve	mA	Price	Delivery
RTA060630B	FuseBox RTA060630B 6A SPN RCBO Type A B Curve 30mA 6kA	6	B	30	Excl. VAT: £9.99 Incl. VAT: £11.99	Stock available Next working day	View
RTA061030B	FuseBox RTA061030B 10A SPN RCBO Type A B Curve 30mA 6kA	10	B	30	Excl. VAT: £9.99 Incl. VAT: £11.99	Stock available Next working day	View
RTA061630B	FuseBox RTA061630B 16A SPN RCBO Type A B Curve 30mA 6kA	16	B	30	Excl. VAT: £9.99 Incl. VAT: £11.99	Stock available Next working day	View
RTA062030B	FuseBox RTA062030B 20A SPN RCBO Type A B Curve 30mA 6kA	20	B	30	Excl. VAT: £9.99 Incl. VAT: £11.99	Stock available Next working day	View
RTA062530B	FuseBox RTA062530B 25A SPN RCBO Type A B Curve 30mA 6kA				Excl. VAT: £9.99 Incl. VAT: £11.99	Stock available Next working day	View
RTA063230B	FuseBox RTA063230B 32A SPN RCBO Type A B Curve 30mA 6kA	32	B	30	Excl. VAT: £9.99 Incl. VAT: £11.99	Stock available Next working day	View
RTA064030B	FuseBox RTA064030B 40A SPN RCBO Type A B Curve 30mA 6kA	40	B	30	Excl. VAT: £9.99 Incl. VAT: £11.99	Stock available Next working day	View
RTA064530B	FuseBox RTA064530B 45A SPN RCBO Type A B Curve 30mA 6kA				Excl. VAT: £9.99 Incl. VAT: £11.99	Stock available Next working day	View
RTA065030B	FuseBox RTA065030B 50A SPN RCBO Type A B Curve 30mA 6kA				Excl. VAT: £9.99 Incl. VAT: £11.99	Stock available Next working day	View
RTAMB06	FuseBox RTAMB06 6A 2P Mini RCBO Type A B Curve 30mA 6kA	6	B		Excl. VAT: £13.50 Incl. VAT: £16.20	Stock available Next working day	View
RTAMB10	FuseBox RTAMB10 10A 2P Mini RCBO Type A B Curve 30mA 6kA	10	B		Excl. VAT: £13.50 Incl. VAT: £16.20	Stock available Next working day	View
RTAMB16	FuseBox RTAMB16 16A 2P Mini RCBO Type A B Curve 30mA 6kA	16	B		Excl. VAT: £13.50 Incl. VAT: £16.20	Stock available Next working day	View
RTAMB20	FuseBox RTAMB20 20A 2P Mini RCBO Type A B Curve 30mA 6kA	20	B		Excl. VAT: £13.50 Incl. VAT: £16.20	Stock available Next working day	View
RTAMB32	FuseBox RTAMB32 32A 2P Mini RCBO Type A B Curve 30mA 6kA	32	B		Excl. VAT: £13.50 Incl. VAT: £16.20	Stock available Next working day	View
RTAMB40	FuseBox RTAMB40 40A 2P Mini RCBO Type A B Curve 30mA 6kA	40	B		Excl. VAT: £13.50 Incl. VAT: £16.20	Stock available Next working day	View

Choose MCBs with this board

SKU	Name	Amps	Curve	Price	Delivery
MT06B061	FuseBox MT06B061 6A Single Pole B Curve 6kA MCB	6	B	Excl. VAT: £1.81 Incl. VAT: £2.17	Stock available Next working day	View
MT06B101	FuseBox MT06B101 10A SP MCB SP B Curve 6kA	10	B	Excl. VAT: £1.81 Incl. VAT: £2.17	Stock available Next working day	View
MT06B161	FuseBox MT06B161 16A Single Pole B Curve 6kA MCB	16	B	Excl. VAT: £1.81 Incl. VAT: £2.17	Stock available Next working day	View
MT06B201	FuseBox MT06B201 20A Single Pole B Curve 6kA MCB	20	B	Excl. VAT: £1.81 Incl. VAT: £2.17	Stock available Next working day	View
MT06B251	FuseBox MT06B251 25A Single Pole B Curve 6kA MCB	25	B	Excl. VAT: £1.81 Incl. VAT: £2.17	Stock available Next working day	View
MT06B321	FuseBox MT06B321 32A Single Pole B Curve 6kA MCB	32	B	Excl. VAT: £1.81 Incl. VAT: £2.17	Stock available Next working day	View
MT06B401	FuseBox MT06B401 40A Single Pole MCB B Curve 6kA	40	B	Excl. VAT: £1.81 Incl. VAT: £2.17	Stock available Next working day	View
MT06B501	FuseBox MT06B501 50A Single Pole MCB SP B Curve 6kA	50	B	Excl. VAT: £1.81 Incl. VAT: £2.17	Stock available Next working day	View
MT06B631	FuseBox MT06B631 63A SP MCB Single Pole B Curve 6kA	63	B	Excl. VAT: £1.81 Incl. VAT: £2.17	Stock available Next working day	View
MT06C061	FuseBox MT06C061 6A Single Pole MCB SP C Curve 6kA			Excl. VAT: £1.81 Incl. VAT: £2.17	Stock available Next working day	View
MT06C161	FuseBox MT06C161 16A SP MCB Single Pole C Curve 6kA			Excl. VAT: £1.81 Incl. VAT: £2.17	Stock available Next working day	View
MT06C201	FuseBox MT06C201 20A Single Pole MCB SP C Curve 6kA			Excl. VAT: £1.81 Incl. VAT: £2.17	Stock available Next working day	View

Choose Accessories

SKU	Name	Price	Delivery
ABTR	FuseBox ABTR Bell Transformer 2 Module 1A 8V 230V	Excl. VAT: £12.45 Incl. VAT: £14.94	Stock available Next working day	View
ABTR16	FuseBox ABTR16 Bell Transformer 0.5A 16V 230V	Excl. VAT: £9.22 Incl. VAT: £11.06	Stock available Next working day	View
SPDCUKITT2	FuseBox SPDCUKITT2 Type 2 Surge Protector Device c/w Cables & B Type 32A MCB	Excl. VAT: £24.07 Incl. VAT: £28.88	Stock available Next working day	View
ADRB	FuseBox ADRB DIN Rail Blank Module	Excl. VAT: £1.24 Incl. VAT: £1.49	Stock available Next working day	View
10100611	Wiska SPRINT GLP20+ Cable Gland White c/w Locknuts IP69/IP68 Pack=10	Excl. VAT: £3.68 Incl. VAT: £4.42	Stock available Next working day	View
99706	Wiska SPRINT M25 Cable Gland GLP Pack IP68 White Pack=10	Excl. VAT: £7.28 Incl. VAT: £8.74	Stock available Next working day	View
G32T	FuseBox G32T M32 Tail Gland Kit For Consumer Units	Excl. VAT: £2.02 Incl. VAT: £2.42	Stock available Next working day	View
ACCF	FuseBox ACCF 25mm2 Tail Clamp for Live & Neutral	Excl. VAT: £1.80 Incl. VAT: £2.16	Stock available Next working day	View
AMBM	FuseBox AMBM 18mm Metal Blank Pack=6	Excl. VAT: £2.70 Incl. VAT: £3.24	Stock available Next working day	View
AMBP	FuseBox AMBP 18mm Plastic Blank ABS Pack=12	Excl. VAT: £1.00 Incl. VAT: £1.20	Stock available Next working day	View
10063009	Wiska QUIXX 20mm Flame Retardent Membrane Grommet EMT-F 20 IP66 M20 Grey	Excl. VAT: £0.44 Incl. VAT: £0.53	Stock available Next working day	View
10063010	Wiska QUIXX 25mm Flame Retardent Membrane Grommet EMT-F 20 IP66 M25 Grey	Excl. VAT: £0.68 Incl. VAT: £0.82	Stock available Next working day	View
10063011	Wiska QUIXX 32mm Flame Retardent Membrane Grommet EMT-F 20 IP66 M32 Grey	Excl. VAT: £0.76 Incl. VAT: £0.91	Stock available Next working day	View
FLEXY25-1M	Doncaster Cables Easi-Fit Meter Tails Kit 25mm2 x 1M	Excl. VAT: £9.80 Incl. VAT: £11.76	Stock available Next working day	View
FLEXY25-2M	Doncaster Cables Easi-Fit Meter Tails Kit 25mm2 x 2M	Excl. VAT: £19.60 Incl. VAT: £23.52	Stock available Next working day	View
FLEXY25-3M	Doncaster Cables Easi-Fit Meter Tails Kit 25mm2 x 3M	Excl. VAT: £29.40 Incl. VAT: £35.28	Stock available Next working day	View
INC202	FuseBox INC202 20A DP Normally Open Contactor 230V	Excl. VAT: £12.90 Incl. VAT: £15.48	Stock available Next working day	View
INC254	FuseBox INC254 25A 4P 230V Normally Open Contactor	Excl. VAT: £21.15 Incl. VAT: £25.38	Stock available Next working day	View
INC402	FuseBox INC402 40A 230v DP Normally Open Contactor	Excl. VAT: £21.15 Incl. VAT: £25.38	Stock available Next working day	View
INC634	FuseBox INC634 63A 230v 4P Normally Open Contactor	Excl. VAT: £29.90 Incl. VAT: £35.88	Stock available Next working day	View
QGT3B	Unicrimp 5x8mm Grommet Edging Strip 3M Black Pack=1	Excl. VAT: £4.80 Incl. VAT: £5.76	Stock available Next working day	View
WA227	Click Essentials Junction Box 1 Pole 5x35mm 100A Black	Excl. VAT: £4.22 Incl. VAT: £5.06	Stock available Next working day	View
WA228	Click Essentials Junction Box 2 Pole 5x35mm 100A Black	Excl. VAT: £6.91 Incl. VAT: £8.29	Stock available Next working day	View
DB700	Click Essentials Main Switch Fused (80A HRC Fuse Fitted) White	Excl. VAT: £18.27 Incl. VAT: £21.92	Stock available Next working day	View
DB981	Click Essentials Elongated Cable Shroud	Excl. VAT: £1.43 Incl. VAT: £1.72	Stock available Next working day	View
RECSW2S	Wylex RECSW2S DP Slimline Metered Supply Isolator 100A	Excl. VAT: £10.45 Incl. VAT: £12.54	Stock available Next working day	View
IT1002	FuseBox IT1002 100A Double Pole Main Switch Isolator	Excl. VAT: £8.30 Incl. VAT: £9.96	Stock available Next working day	View
AFDD060630B	FuseBox AFDD060630B 6A 2P AFDD RCBO Type A B Curve 30mA	Excl. VAT: £76.50 Incl. VAT: £91.80	Stock available Next working day	View
AFDD061030B	FuseBox AFDD061030B 10A 2P AFDD RCBO Type A B Curve 30mA	Excl. VAT: £76.50 Incl. VAT: £91.80	Stock available Next working day	View
AFDD061630B	FuseBox AFDD061630B 16A 2P AFDD RCBO Type A B Curve 30mA	Excl. VAT: £76.50 Incl. VAT: £91.80	Stock available Next working day	View
AFDD062030B	FuseBox AFDD062030B 20A 2P AFDD RCBO Type A B Curve 30mA	Excl. VAT: £76.50 Incl. VAT: £91.80	Stock available Next working day	View
AFDD062530B	FuseBox AFDD062530B AFDD RCBO 2P Type A 25A 30mA B Curve	Excl. VAT: £76.50 Incl. VAT: £91.80	Stock available Next working day	View
AFDD063230B	FuseBox AFDD063230B 32A 2P AFDD RCBO Type A B Curve 30mA	Excl. VAT: £76.50 Incl. VAT: £91.80	Stock available Next working day	View
AFDD064030B	FuseBox AFDD064030B AFDD RCBO 2P Type A 40A 30mA B Curve	Excl. VAT: £76.50 Incl. VAT: £91.80	Stock available Next working day	View
RTAMC06	FuseBox RTAMC06 6A 2P Mini RCBO Type A C Curve 30mA 6kA	Excl. VAT: £13.50 Incl. VAT: £16.20	Stock available Next working day	View
RTAMC10	FuseBox RTAMC10 10A 2P Mini RCBO Type A C Curve 30mA 6kA	Excl. VAT: £13.50 Incl. VAT: £16.20	Stock available Next working day	View
RTAMC16	FuseBox RTAMC16 16A 2P Mini RCBO Type A C Curve 30mA 6kA	Excl. VAT: £13.50 Incl. VAT: £16.20	Stock available Next working day	View
RTAMC20	FuseBox RTAMC20 20A 2P Mini RCBO Type A C Curve 30mA 6kA	Excl. VAT: £13.50 Incl. VAT: £16.20	Stock available Next working day	View
RTAMC32	FuseBox RTAMC32 32A 2P Mini RCBO Type A C Curve 30mA 6kA	Excl. VAT: £13.50 Incl. VAT: £16.20	Stock available Next working day	View
RTAMC40	FuseBox RTAMC40 40A 2P Mini RCBO Type A C Curve 30mA 6kA	Excl. VAT: £13.50 Incl. VAT: £16.20	Stock available Next working day	View
221-412	Wago 221-412 2 Way Compact Cable Connector max. 4 mm Pack=100	Excl. VAT: £20.05 Incl. VAT: £24.06	Stock available Next working day	View
221-413	Wago 221-413 3 Way Compact Cable Connector max. 4 mm Pack=50	Excl. VAT: £12.09 Incl. VAT: £14.51	Stock available Next working day	View
SY2D	SPD SP Type 2+3 20kA 275V Surge Protection Device	Excl. VAT: £51.47 Incl. VAT: £61.76	Stock available Next working day	View
SPDCUKITT1	FuseBox SPDCUKITT1 Type 1 Surge Protector Device c/w Cables & MCB	Excl. VAT: £99.34 Incl. VAT: £119.21	Stock available Next working day	View
FBLOK	FuseBox FBLOK Lock Off Kit	Excl. VAT: £16.07 Incl. VAT: £19.28	Stock available Next working day	View

Details
Specification
Delivery Info

The FuseBox F2021MX 21 Way Main Switch & T2 SPD Consumer Unit is a reliable and efficient electrical unit that combines the main switch (100A) and T2 SPD. It is made of 1mm electro galvanized steel with a smooth RAL 9001 powder-coated finish for added durability and style.

This consumer unit is allows up to 21 circuits making it perfect for various electrical applications. It also includes a tail clamp and a circuit identification label/grommet strip for easier installation and identification. The knockouts selection ranges from 20mm to 40mm, ensuring a versatile fit for your wiring.

The device mounts onto a 35mm DIN rail and has a maximum terminal bar capacity of 16mmÂ². The protection degree (IP) is rated at 2.0, ensuring safe usage in various environments. It is compliant with the EN 61439-3 standard and has a rated voltage of 230V and frequency of 50/60Hz.

Choose the FuseBox F2021MX 21 Way Main Switch & T2 SPD Consumer Unit for a reliable and efficient electrical unit that suits your needs.

Catalogue Page

Techincal Data Sheet

Product	Consumer Unit
Current Rating (max)	100 A
Rated Voltage	230 V
Installation Type	Domestic
Incomer Included	Y
Door/Lid Type	Solid
Incomer Type	Switch Disconnector
Incomer Current Rating	100 A
Pole Configuration	Double Pole (2P)
Outgoing Ways	21 Way
Metered	N
Mounting	Surface
Ingress Protection	IP2XC
Split Load	N
Surge Protection Included	Yes
Surge Protector Type	Type 2
RCD s Included	N
Outgoing Devices Included	N
High Integrity	No
Body Material	Steel
Body Colour	Cream RAL 9001
Body Finish	Powder Coated
Height	512 mm
Width	306 mm
Depth	113 mm
Number of Phases	Single
18th Edition Compliant	Y
Standards	BS EN 61439-3
Dimensions	100A 512x306x113mm
Product Type	21 Way Main Switch & T2 SPD

SKU	FUSEB-F2021MX
SKU	F2021MX
Manufacturer	FuseBox
