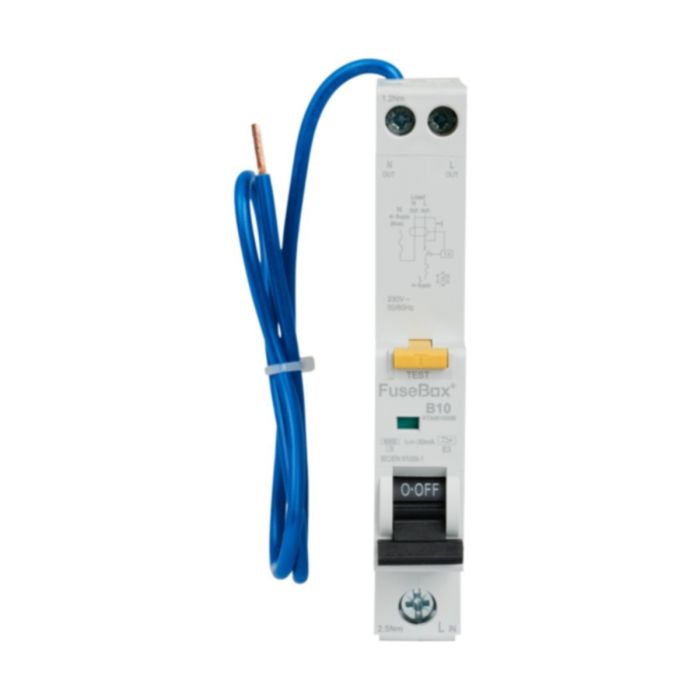

FuseBox RTA061030B 10A SPN RCBO Type A B Curve 30mA 6kA
FuseBox RTA061030B 10A SPN RCBO Type A B Curve 30mA 6kA is designed to quickly disconnect the circuit when a fault occurs to prevent damage or fire. This RCBO has a B Curve, making it ideal for applications with inductive or capacitive loads.
- 10A Rated
- B Curve
- 6kA
- Type A
- Single Pole
- Recommended Tightening Torque: 2.5Nm
Stock available Next working day
SKU
FUSEB-RTA061030B
£9.49 £11.39
Product Categories
The device is equipped with an overload protection feature that trips the circuit breaker when the current exceeds its rated value. The RCBO is a 1P + N configuration, rated at 230V and 10A, with a breaking capacity of 6kA. It has a Type A tripping characteristic that responds to AC and pulsating DC currents up to 6mA. The device also has a residual current characteristic of 30mA, making it suitable for protection against electric shock. This RCBO has a B Curve, making it ideal for applications with inductive or capacitive loads. Its mechanical endurance is 10,000 operations, ensuring long service life. The device has a protection degree of IP20, making it suitable for indoor use. It can accommodate up to 1-16mm² L IN / 1-10mm² OUT N L cables and comes with a flying neutral cable length of 450mm. The RCBO is designed for easy mounting on 35mm DIN rails and made with PA6 (Nylon 6) material, making it lightweight and durable.
SKU | FUSEB-RTA061030B |
---|---|
Manufacturer Part Code | RTA061030B |
Product Range | Edition 4 |
Current Rating | 10A |
Trip Type | Type B |
Short Circuit Rating | 6 kA |
Sensitivity | 30 mA |
Pole Configuration | 1P+N |
Voltage | 230V |
Mounting Method | DIN Rail |
Ingress Protection | IP20 |
Width (mm) | 18.00 mm |
Standards | BS EN 61009-1 |
Is on Sale | No |
Circuit Breakers | Description | Product | RCBO | |
Circuit Breakers | Description | Product Type | SPN Class A Type B | |
Circuit Breakers | Dimensions | Width (EF008808) | 18 mm | |
Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
Circuit Breakers | Features | Pole Configuration | SP+N | |
Circuit Breakers | Features | Sensitivity | 30 mA | |
Circuit Breakers | Features | Short Circuit Rating | 6 kA | |
Circuit Breakers | Features | Trip Type | Type B | |
Circuit Breakers | General | Standards | BS EN 61009-1 | |
Circuit Breakers | Technical Data | Current Rating (EF000227) | 10 A | |
Circuit Breakers | Technical Data | RCD Type/Class | A | |
Circuit Breakers | Technical Data | Voltage | 230 V |
