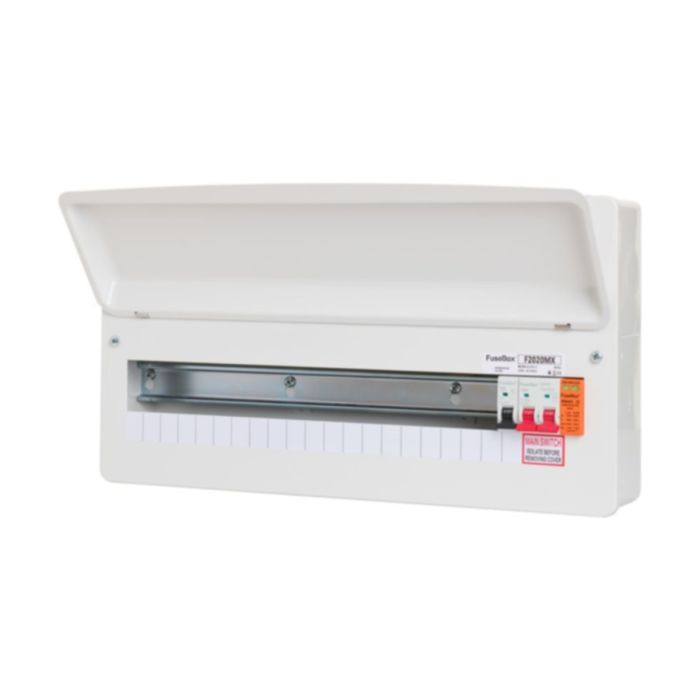

FuseBox F2020MX 20 Way SPD T2 Main Switch Consumer Unit c/w Tail Clamp 100A New board F3021MZ

Name: FuseBox F2020MX 20 Way SPD T2 Main Switch Consumer Unit c/w Tail Clamp 100A **New board F3021MZ**
Brand: FuseBox
SKU: FUSEB-F2020MX

Be the first to review this product

The F2020MX Consumer Unit has been replaced by the updated F3021MZ 21 Way T2 SPD 100A Main Switch Consumer Unit. The new F3 Series model features an additional way and a reinforced grommet strip, single module SPD device for improved durability and performance.

The FuseBox F2020MX Consumer Unit features a 20 Way SPD T2 Main Switch and Tail Clamp for your electrical system, ensuring protection from lightning strikes, power surges, and other electrical disruptions.

Dimensions : 480mm(w) x 255mm(h) x 113mm(d)
T2 surge protection
Earth and neutral terminal bars at the top
Removable and raised DIN rail
Round knock-outs on all faces
Extra height for RCBOs
1mm electro-galvanised steel (zinc)
RAL 9001 powder-coated fi nish
Tail clamp (ACCF)
Circuit identification labels
Captive screws on front cover
IP20XC
BS EN61439-3

Estimated delivery Please call Sales TBC

SKU

FUSEB-F2020MX

Request Price

Product Downloads

FUSEB-F2020MX Catalog Page

FUSEB-F2020MX Technical Data

Product Categories

Consumer Units

The FuseBox F2020MX Consumer Unit is part of the 2021 F2 series and features 20 usable ways for powering your electrical system. It comes with a T2 SPD, which offers protection against lightning strikes, power surges, and other electrical disturbances. Additionally, the unit includes a tail clamp that ensures a secure connection to your wiring. The consumer unit is rated for 230V, 50/60Hz and offers a protection degree of 2XC IP, making it suitable for a range of domestic and commercial applications. The device can be mounted on a 35mm DIN rail and features knockout options ranging from 20mm to 40mm. The terminal bar capacity is 16mmÂ² with a tightening torque of 2.0 Nm.

More Information
Manufacturer Part Code	F2020MX
SKU	FUSEB-F2020MX
Product Finish	Powder Coated
Material	Steel
Colour	Cream RAL 9001
Ingress Protection	IP2XC
Mounting Method	Surface
Outgoing Ways	20 Way
Depth (mm)	113.00 mm
Width (mm)	486.00 mm
Height (mm)	259.00 mm
Door/Lid Type	Solid
Pole Configuration	2P
Incomer Type	Switch Disconnector
Incomer current rating	100 A
Incomer Included	Yes
RCD included	No
Split Load	No
Metered	No
Outgoing Devices Included	No
18th Edition Compliant	Yes
Standards	BS EN 61439-3
Number of Phases	Single
Is on Sale	No

Distribution Boards \| Description \| Current Rating (max)	100 A
Distribution Boards \| Description \| Product	Consumer Unit
Distribution Boards \| Description \| Product Type	20 Way SPD T2 Main Switch
Distribution Boards \| Description \| Product	Consumer Unit
Distribution Boards \| Features \| Door/Lid Type	Solid
Distribution Boards \| Features \| High Integrity	No
Distribution Boards \| Features \| Incomer Included	Y
Distribution Boards \| Features \| Incomer Type	Switch Disconnector
Distribution Boards \| Features \| Ingress Protection (EF005474)	IP2XC
Distribution Boards \| Features \| Installation Type	Domestic
Distribution Boards \| Features \| Metered	N
Distribution Boards \| Features \| Mounting (EF000003)	Surface
Distribution Boards \| Features \| Outgoing Devices Included	N
Distribution Boards \| Features \| Outgoing Ways	20 Way
Distribution Boards \| Features \| Pole Configuration	Double Pole (2P)
Distribution Boards \| Features \| RCD s Included	N
Distribution Boards \| Features \| Rated Voltage	230 V
Distribution Boards \| Features \| Split Load	N
Distribution Boards \| Features \| Surge Protection Included	Yes
Distribution Boards \| Features \| Surge Protector Type	Type 2
Distribution Boards \| General \| Standards	BS EN 61439-3
Distribution Boards \| Material & Finish \| Body Colour	Cream RAL 9001
Distribution Boards \| Material & Finish \| Body Finish	Powder Coated
Distribution Boards \| Technical Data \| 18th Edition Compliant	Y

Distribution Boards \| Description \| Current Rating (max)	100 A
Distribution Boards \| Description \| Product	Consumer Unit
Distribution Boards \| Description \| Product Type	20 Way SPD T2 Main Switch
Distribution Boards \| Description \| Product	Consumer Unit
Distribution Boards \| Features \| Door/Lid Type	Solid
Distribution Boards \| Features \| High Integrity	No
Distribution Boards \| Features \| Incomer Included	Y
Distribution Boards \| Features \| Incomer Type	Switch Disconnector
Distribution Boards \| Features \| Ingress Protection (EF005474)	IP2XC
Distribution Boards \| Features \| Installation Type	Domestic
Distribution Boards \| Features \| Metered	N
Distribution Boards \| Features \| Mounting (EF000003)	Surface
Distribution Boards \| Features \| Outgoing Devices Included	N
Distribution Boards \| Features \| Outgoing Ways	20 Way
Distribution Boards \| Features \| Pole Configuration	Double Pole (2P)
Distribution Boards \| Features \| RCD s Included	N
Distribution Boards \| Features \| Rated Voltage	230 V
Distribution Boards \| Features \| Split Load	N
Distribution Boards \| Features \| Surge Protection Included	Yes
Distribution Boards \| Features \| Surge Protector Type	Type 2
Distribution Boards \| General \| Standards	BS EN 61439-3
Distribution Boards \| Material & Finish \| Body Colour	Cream RAL 9001
Distribution Boards \| Material & Finish \| Body Finish	Powder Coated
Distribution Boards \| Technical Data \| 18th Edition Compliant	Y
