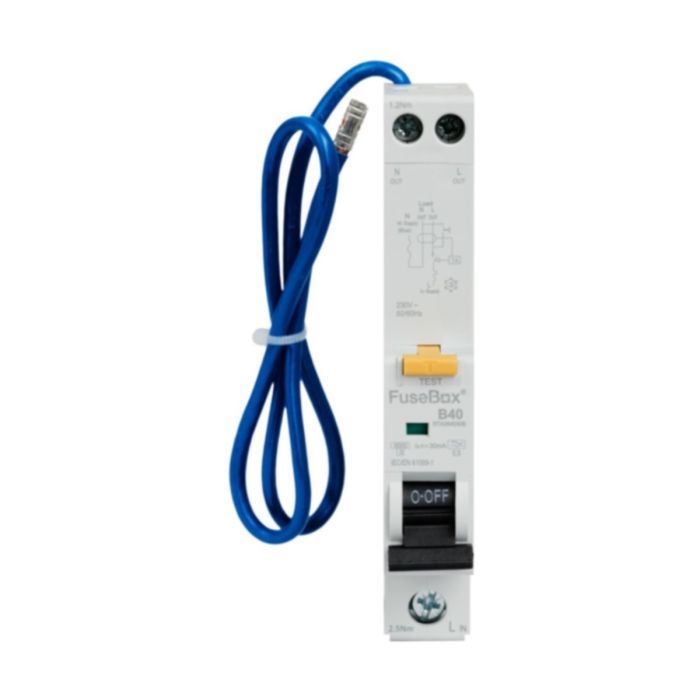

FuseBox RTA064030B 40A SPN RCBO Type A B Curve 30mA 6kA
The FuseBox RTA064030B RCBO SPN Class A Type B 40A 30mA 6kA is a high-quality residual current breaker with overcurrent protection that is perfect for residential and commercial applications
- 40A Rated
- Rated Voltage (Un/AC): 230V
- Tripping Characteristics: Type B (3-5In)
- Rated Breaking Capacity (Icu): 6000A (6kA)
- Type A
- Single Pole
- Recommended Tightening Torque (Nm): 2.5
The FuseBox RTA064030B RCBO SPN Class A Type B 40A 30mA 6kA is a high-performance residual current breaker with overcurrent protection. It has a rated voltage of 230V and a frequency of 50/60Hz. With a rated breaking capacity of 6000A (6kA), this RCBO is designed to protect against overload and short-circuit faults.
This RCBO features a residual current characteristics of 0.03 and tripping characteristics of Type B (3-5In) that makes it perfect for applications where protection against both AC and pulsating DC currents is required. The recommended tightening torque for this product is L IN 2.5Nm / OUT N L 1.2Nm.
The FuseBox RTA064030B RCBO SPN Class A Type B 40A 30mA 6kA is ideal for both residential and commercial applications due to its high performance and reliability.
SKU | FUSEB-RTA064030B |
---|---|
Manufacturer Part Code | RTA064030B |
Product Range | Edition 4 |
Current Rating | 40A |
Trip Type | Type B |
Short Circuit Rating | 6 kA |
Sensitivity | 30 mA |
Pole Configuration | 1P+N |
Voltage | 230V |
Mounting Method | DIN Rail |
Ingress Protection | IP20 |
Width (mm) | 18.00 mm |
Standards | BS EN 61009-1 |
Is on Sale | No |
Circuit Breakers | Description | Product | RCBO | |
Circuit Breakers | Description | Product Type | SPN Class A Type B | |
Circuit Breakers | Dimensions | Width (EF008808) | 18 mm | |
Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
Circuit Breakers | Features | Pole Configuration | SP+N | |
Circuit Breakers | Features | Sensitivity | 30 mA | |
Circuit Breakers | Features | Short Circuit Rating | 6 kA | |
Circuit Breakers | Features | Trip Type | Type B | |
Circuit Breakers | General | Standards | BS EN 61009-1 | |
Circuit Breakers | Technical Data | Current Rating (EF000227) | 40 A | |
Circuit Breakers | Technical Data | RCD Type/Class | A | |
Circuit Breakers | Technical Data | Voltage | 230 V |
