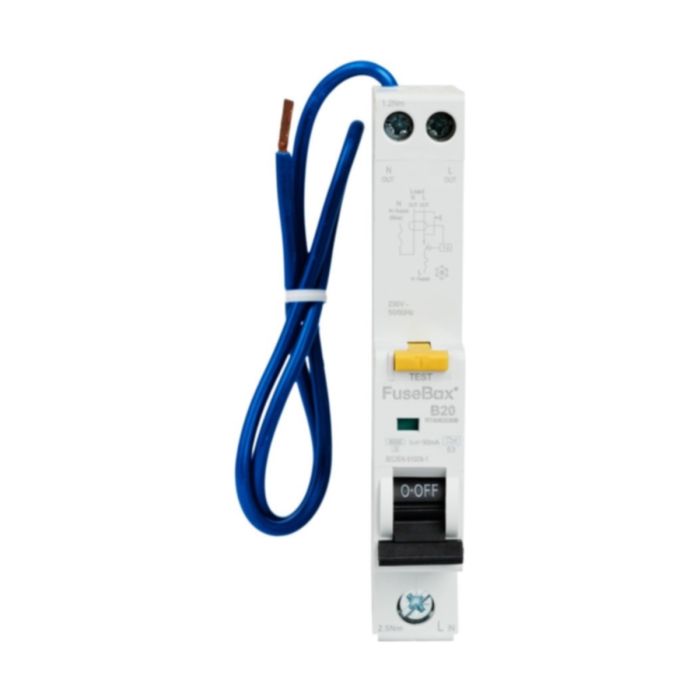

The FuseBox RTA062030B 20A SPN RCBO Type A B Curve 30mA 6kA is a high-quality residual current breaker with overcurrent protection designed to protect electrical circuits in residential and commercial buildings. With a rated voltage of 230V and frequency of 50/60Hz, this RCBO is suitable for use in a variety of applications. This RCBO has a rated breaking capacity of 6kA and a rated current of 20A. Its tripping characteristics are Type A, which means it detects both AC and pulsating DC currents up to 6mA. Its residual current characteristics are 30mA, and it has a rated residual operating current of 0.03A. The FuseBox RTA062030B has a mechanical endurance of 10,000 cycles and a protection degree of IP20. It has a maximum terminal capacity of 16mm² L IN / 10mm² OUT N L and a recommended tightening torque of 2.5Nm L IN / 1.2Nm OUT N L. Its flying neutral cable length is 450mm, and it can be mounted on a 35mm DIN Rail.
View on Trimble Luckins
| Description | Product Type | SPN Class A Type B |
| Description | Product | RCBO |
