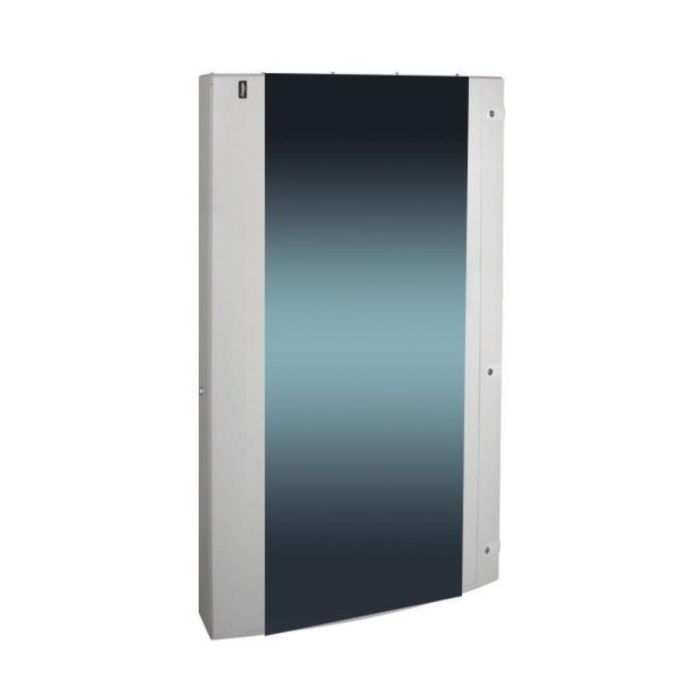

Hager JHF812BG Invicta 3 Panelboard 12 Way 125A Outgoers Glazed Door 800A
800amp Panel Board Straight 12 Way TP x 125amp Outgoing Max
This product is subject to additional delivery costs due to its weight/size. Find out more
- Comprises of IP3XD enclosure, pan assembly, neutral bar and earth bar
- Conforms to BS EN 61439-2. InA = 800A, Inc = 125A/250A, Icc = 50kA.
- Supplied without incoming kit, one of the incomer kits listed below must be used.
- Form 3B type 2 using outgoing terminal shield (form 3A without terminal shield).
- Removable gland plates are provided top and bottom for ease of installation.
- MCCB: 800A 3 or 4 pole.
- Incoming cable lugs 44mm pad with 2 x M12 hexagonal bolt.
Estimated delivery 3-5 Working days
SKU
HG-JHF812BG
£3,235.27 £3,882.32
Product Downloads
Product Categories
Choose your Incomers
Hager JF864BM Invicta 3 Incomer 4P MCCB Kit 630A SKU: HG-JF864BM
Estimated delivery 3-5 Working days
£1,692.08 £2,030.50
Hager JF884BD Invicta 3 Connection Kit Direct 4P SKU: HG-JF884BD
Estimated delivery 3-5 Working days
£188.97 £226.76
Hager JF863BM Invicta 3 Incomer 3P MCCB Kit 630A SKU: HG-JF863BM
Estimated delivery 3-5 Working days
£1,522.13 £1,826.56
Hager JF864BSW Invicta 3 Incomer Kit 4P Isolator 630A SKU: HG-JF864BSW
Estimated delivery 3-5 Working days
£1,283.07 £1,539.68
Hager JF844BSW Invicta 3 Incomer Kit 4P Isolator 400A 160x280x220mm SKU: HG-JF844BSW
Estimated delivery 3-5 Working days
£1,188.03 £1,425.64
Choose your Outgoing Devices
Hager HDA025U 25A 18kA 1 Pole 1D Adjustable Thermal, Fixed Magnetic MCCB h3 x160 SKU: HG-HDA025U
Estimated delivery 3-5 Working days
£213.90 £256.68
Hager HDA040U 40A 18kA 1 Pole 1D Adjustable Thermal, Fixed Magnetic MCCB h3 x160 SKU: HG-HDA040U
Estimated delivery 3-5 Working days
£213.90 £256.68
Hager HDA063U 63A 18kA 1 Pole 1D Adjustable Thermal, Fixed Magnetic MCCB h3 x160 SKU: HG-HDA063U
Estimated delivery 3-5 Working days
£213.90 £256.68
Hager HDA080U 80A 18kA 1 Pole 1D Adjustable Thermal, Fixed Magnetic MCCB h3 x160 SKU: HG-HDA080U
Estimated delivery 3-5 Working days
£213.90 £256.68
Hager HDA100U 100A 18kA 1 Pole 1D Adjustable Thermal, Fixed Magnetic MCCB h3 x160 SKU: HG-HDA100U
Estimated delivery 3-5 Working days
£224.79 £269.75
Hager HDA125U 125A 18kA 1 Pole 1D Adjustable Thermal, Fixed Magnetic MCCB h3 x160 SKU: HG-HDA125U
Estimated delivery 3-5 Working days
£290.13 £348.16
Hager HNB100H 100A 40kA 3 Pole Adjustable Thermal Magnetic MCCB x250 SKU: HG-HNB100H
Estimated delivery 3-5 Working days
£379.10 £454.92
Hager HNB125H 125A 40kA 3 Pole Adjustable Thermal Magnetic MCCB x250 SKU: HG-HNB125H
Estimated delivery 3-5 Working days
£411.38 £493.66
Hager HNB160H 160A 40kA 3 Pole Adjustable Thermal Magnetic MCCB x250 SKU: HG-HNB160H
Estimated delivery 3-5 Working days
£441.61 £529.93
Hager HNB200H 200A 40kA 3 Pole Adjustable Thermal Magnetic MCCB x250 SKU: HG-HNB200H
Estimated delivery 3-5 Working days
£516.72 £620.06
Hager HNB250H 250A 40kA 3 Pole Adjustable Thermal Magnetic MCCB x250 SKU: HG-HNB250H
Estimated delivery 3-5 Working days
£727.53 £873.04
Hager HDA038Z 40A 18kA 1 Pole 1D Fixed Thermal, Fixed Magnetic MCCB h3 x160 SKU: HG-HDA038Z
Estimated delivery 3-5 Working days
£110.73 £132.88
Hager HDA048Z 50A 18kA 1 Pole 1D Fixed Thermal, Fixed Magnetic MCCB h3 x160 SKU: HG-HDA048Z
Estimated delivery 3-5 Working days
£117.46 £140.95
Hager HDA061Z 63A 18kA 1 Pole 1D Fixed Thermal, Fixed Magnetic MCCB h3 x160 SKU: HG-HDA061Z
Estimated delivery 3-5 Working days
£117.46 £140.95
Hager HDA078Z 80A 18kA 1 Pole 1D Fixed Thermal, Fixed Magnetic MCCB h3 x160 SKU: HG-HDA078Z
Estimated delivery 3-5 Working days
£117.46 £140.95
Hager HDA098Z 100A 18kA 1 Pole 1D Fixed Thermal, Fixed Magnetic MCCB h3 x160 SKU: HG-HDA098Z
Estimated delivery 3-5 Working days
£117.46 £140.95
Hager HDA123Z 125A 18kA 1 Pole 1D Fixed Thermal, Fixed Magnetic MCCB h3 x160 SKU: HG-HDA123Z
Estimated delivery 3-5 Working days
£149.96 £179.95
Choose your Accessories
Hager JN001BP MCCB Blanking Piece (3x Blanks Required Per TP Way) SKU: HG-JN001BP
Stock available Next working day
£8.25 £9.90
Hager JF003BP Invicta 3 Blanking Plate 3P 250A SKU: HG-JF003BP
Stock available Next working day
£11.66 £13.99
Hager JF801E Invicta 3 Box DIN Rail Small Plain Door SKU: HG-JF801E
Estimated delivery 3-5 Working days
£214.36 £257.23
Hager JF803E Invicta 3 Box DIN Rail Large Plain Door SKU: HG-JF803E
Estimated delivery 3-5 Working days
£261.28 £313.54
Hager JF805E Invicta 3 Spreader Box Small No Door SKU: HG-JF805E
Stock available Next working day
£133.85 £160.62
Hager JF806E Invicta 3 Spreader Box Large No Door SKU: HG-JF806E
Estimated delivery 3-5 Working days
£290.01 £348.01
Hager JF17009SM Invicta Extension 18 Way Side c/w Enclosed DIN SKU: HG-JF17009SM
Estimated delivery 3-5 Working days
£578.43 £694.12
Hager JF3004TM Invicta Extension Top c/w Enclosed DIN 96x4 SKU: HG-JF3004TM
Estimated delivery 3-5 Working days
£254.12 £304.94
Hager JF4508TM Invicta Extension Top c/w Enclosed DIN 96x8 SKU: HG-JF4508TM
Estimated delivery 3-5 Working days
£281.88 £338.26
Hager JF96BP Invicta Blanking Plate DIN 96 SKU: HG-JF96BP
Estimated delivery 3-5 Working days
£22.33 £26.80
Hager JF300CF Invicta Filler Corner Side Enclosure 300mm SKU: HG-JF300CF
Estimated delivery 3-5 Working days
£231.34 £277.61
Hager JF450CF Invicta Filler Corner Side Enclosure 450mm SKU: HG-JF450CF
Estimated delivery 3-5 Working days
£241.14 £289.37
Related Products
Hager JF806E Invicta 3 Spreader Box Large No DoorSKU: HG-JF806E£290.01 £348.01
Estimated delivery 3-5 Working days
Hager HDA080Z 80A 18kA 3 Pole 3D Fixed Thermal, Fixed Magnetic MCCB h3 x160SKU: HG-HDA080Z£162.39 £194.87
Estimated delivery 3-5 Working days
Hager HNB250H 250A 40kA 3 Pole Adjustable Thermal Magnetic MCCB x250SKU: HG-HNB250H£727.53 £873.04
Estimated delivery 3-5 Working days
Hager HDA038Z 40A 18kA 1 Pole 1D Fixed Thermal, Fixed Magnetic MCCB h3 x160SKU: HG-HDA038Z£110.73 £132.88
Estimated delivery 3-5 Working days
Hager JHF884BM Invicta 3 Incomer Kit 4P MCCB 800ASKU: HG-JHF884BM£2,247.81 £2,697.37
Estimated delivery 3-5 Working days
Hager HDA100Z 100A 18kA 3 Pole 3D Fixed Thermal, Fixed Magnetic MCCB h3 x160SKU: HG-HDA100Z£162.39 £194.87
Estimated delivery 3-5 Working days
Hager JF4508TM Invicta Extension Top c/w Enclosed DIN 96x8SKU: HG-JF4508TM£281.88 £338.26
Estimated delivery 3-5 Working days
Hager HDA048Z 50A 18kA 1 Pole 1D Fixed Thermal, Fixed Magnetic MCCB h3 x160SKU: HG-HDA048Z£117.46 £140.95
Estimated delivery 3-5 Working days
Hager JF3004TM Invicta Extension Top c/w Enclosed DIN 96x4SKU: HG-JF3004TM£254.12 £304.94
Estimated delivery 3-5 Working days
Hager HDA125Z 125A 18kA 3 Pole 3D Fixed Thermal, Fixed Magnetic MCCB h3 x160SKU: HG-HDA125Z£207.36 £248.83
Estimated delivery 3-5 Working days
Hager JF801EG Invicta 3 Box DIN Rail Small Glazed DoorSKU: HG-JF801EG£226.87 £272.24
Estimated delivery 3-5 Working days
Hager HDA061Z 63A 18kA 1 Pole 1D Fixed Thermal, Fixed Magnetic MCCB h3 x160SKU: HG-HDA061Z£117.46 £140.95
Estimated delivery 3-5 Working days
Hager JF96BP Invicta Blanking Plate DIN 96SKU: HG-JF96BP£22.33 £26.80
Estimated delivery 3-5 Working days
Hager HDA020Z 20A 18kA 3 Pole 3D Fixed Thermal, Fixed Magnetic MCCB h3 x160SKU: HG-HDA020Z£153.04 £183.65
Estimated delivery 3-5 Working days
Hager HNB125H 125A 40kA 3 Pole Adjustable Thermal Magnetic MCCB x250SKU: HG-HNB125H£411.38 £493.66
Estimated delivery 3-5 Working days
Hager JF805E Invicta 3 Spreader Box Small No DoorSKU: HG-JF805E£133.85 £160.62
Stock available Next working day
Hager HDA078Z 80A 18kA 1 Pole 1D Fixed Thermal, Fixed Magnetic MCCB h3 x160SKU: HG-HDA078Z£117.46 £140.95
Estimated delivery 3-5 Working days
Hager HDA032Z 32A 18kA 3 Pole 3D Fixed Thermal, Fixed Magnetic MCCB h3 x160SKU: HG-HDA032Z£153.04 £183.65
Estimated delivery 3-5 Working days
Hager HNB200H 200A 40kA 3 Pole Adjustable Thermal Magnetic MCCB x250SKU: HG-HNB200H£516.72 £620.06
Estimated delivery 3-5 Working days
Hager JN001BP MCCB Blanking Piece (3x Blanks Required Per TP Way)SKU: HG-JN001BP£8.25 £9.90
Stock available Next working day
Hager HDA098Z 100A 18kA 1 Pole 1D Fixed Thermal, Fixed Magnetic MCCB h3 x160SKU: HG-HDA098Z£117.46 £140.95
Estimated delivery 3-5 Working days
Hager JF003BP Invicta 3 Blanking Plate 3P 250ASKU: HG-JF003BP£11.66 £13.99
Stock available Next working day
Hager HDA040Z 40A 18kA 3 Pole 3D Fixed Thermal, Fixed Magnetic MCCB h3 x160SKU: HG-HDA040Z£153.04 £183.65
Estimated delivery 3-5 Working days
Hager JF14006SM Invicta Extension 12 Way Side c/w Enclosed DINSKU: HG-JF14006SM£512.18 £614.62
Estimated delivery 3-5 Working days
Hager HDA123Z 125A 18kA 1 Pole 1D Fixed Thermal, Fixed Magnetic MCCB h3 x160SKU: HG-HDA123Z£149.96 £179.95
Estimated delivery 3-5 Working days
Hager JF450CF Invicta Filler Corner Side Enclosure 450mmSKU: HG-JF450CF£241.14 £289.37
Estimated delivery 3-5 Working days
Hager HDA050Z 50A 18kA 3 Pole 3D Fixed Thermal, Fixed Magnetic MCCB h3 x160SKU: HG-HDA050Z£162.39 £194.87
Estimated delivery 3-5 Working days
Hager JF300CF Invicta Filler Corner Side Enclosure 300mmSKU: HG-JF300CF£231.34 £277.61
Estimated delivery 3-5 Working days
Hager HDA016Z 16A 18kA 3 Pole 3D Fixed Thermal, Fixed Magnetic MCCB h3 x160SKU: HG-HDA016Z£153.04 £183.65
Estimated delivery 3-5 Working days
Hager HNB100H 100A 40kA 3 Pole Adjustable Thermal Magnetic MCCB x250SKU: HG-HNB100H£379.10 £454.92
Estimated delivery 3-5 Working days
Hager JF803EG Invicta 3 Box DIN Rail Large Glazed DoorSKU: HG-JF803EG£281.37 £337.64
Estimated delivery 3-5 Working days
Hager HDA063Z 63A 18kA 3 Pole 3D Fixed Thermal, Fixed Magnetic MCCB h3 x160SKU: HG-HDA063Z£162.39 £194.87
Estimated delivery 3-5 Working days
Hager HDA025Z 25A 18kA 3 Pole 3D Fixed Thermal, Fixed Magnetic MCCB h3 x160SKU: HG-HDA025Z£153.04 £183.65
Estimated delivery 3-5 Working days
Hager HNB160H 160A 40kA 3 Pole Adjustable Thermal Magnetic MCCB x250SKU: HG-HNB160H£441.61 £529.93
Estimated delivery 3-5 Working days
800amp Panel Board Straight 12 Way TP x 125amp Outgoing Max
| SKU | HG-JHF812BG |
|---|---|
| Manufacturer Part Code | JHF812BG |
| Product Range | Invicta 3 |
| Material | Steel |
| Colour | White |
| Mounting Method | Surface |
| Ingress Protection | IP3X |
| Outgoing Ways | 12 Way |
| Outgoing Devices Included | No |
| Incomer current rating | 800 A |
| Incomer Included | No |
| Pole Configuration | 3P |
| RCD included | No |
| Depth (mm) | 220.00 mm |
| Width (mm) | 900.00 mm |
| Height (mm) | 2,050.00 mm |
| Metered | No |
| Door/Lid Type | Clear |
| 18th Edition Compliant | Yes |
| Standards | BSEN61439-2 |
| Is on Sale | No |
| Brand | Invicta 3 | |
| Distribution Boards | Description | Product | Panelboard | |
| Distribution Boards | Description | Product Type | 12 Way 125A Outgoers Glazed Door | |
| Distribution Boards | Description | Product | Distribution Board | |
| Distribution Boards | Dimensions | Width (EF008808) | 900 mm | |
| Distribution Boards | Features | Door/Lid Type | Clear | |
| Distribution Boards | Features | Incomer Current Rating | 800 A | |
| Distribution Boards | Features | Incomer Included | N | |
| Distribution Boards | Features | Ingress Protection (EF005474) | IP3X | |
| Distribution Boards | Features | Metered | N | |
| Distribution Boards | Features | Mounting (EF000003) | Surface | |
| Distribution Boards | Features | Outgoing Devices Included | N | |
| Distribution Boards | Features | Outgoing Ways | 12 Way | |
| Distribution Boards | Features | Pole Configuration | Triple Pole (3P) | |
| Distribution Boards | Features | RCD s Included | N | |
| Distribution Boards | Features | Split Load | N | |
| Distribution Boards | General | Standards | BSEN61439-2 | |
| Distribution Boards | Material & Finish | Body Colour | White | |
| Distribution Boards | Technical Data | 18th Edition Compliant | Y |
