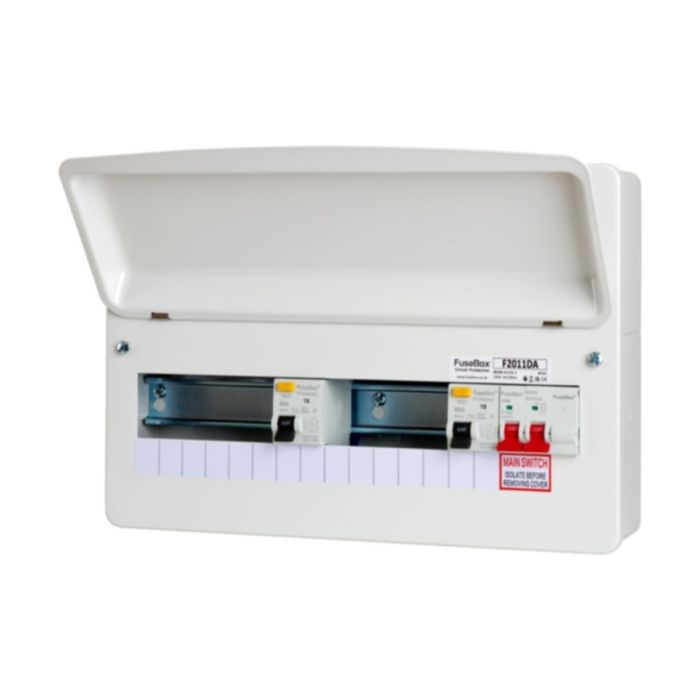

FuseBox F2011DA 11 Way Dual RCD Consumer Unit Type A 2x80A 30mA

The FuseBox F2011DA Consumer Unit offers 11 usable ways, dual RCD protection with 2x80A 30mA Type A protection, and tail clamp compatibility for easy installation.

11 usable ways
Earth and neutral terminal bars at the top
Removable and raised DIN rail
Round knock-outs on all faces
Extra height for RCBOs
1mm electro-galvanised steel (zinc)
RAL 9001 powder-coated fi nish
Tail clamp (ACCF)
Circuit identification labels
Captive screws on front cover
IP20XC
BS EN61439-3

Stock available Next working day

SKU

FUSEB-F2011DA

£67.59 £81.11

Product Downloads

Product Categories

The FuseBox F2011DA Consumer Unit is your go-to solution for electrical protection and convenience. With 11 usable ways, this consumer unit can accommodate your electrical needs with ease. The dual RCD protection, equipped with a 2x80A 30mA Type A protection, keeps your electrical system safe and secure. The product is also tail clamp-compatible, enabling easy installation and setting up. With a rated voltage of 230V and frequency of 50/60Hz, and a maximum terminal bar capacity of 16mmÂ² for secure connections. Terminal bar tightening torque of 2.0Nm ensures the unit stays in place. The unit is also protected with a protection degree of IP2XC, making it suitable for most electrical applications. The unit has a mounting feature on a 35mm DIN rail, making it easily accessible for upkeep and maintenance. This product is manufactured in China and complies with EN 61439-3 standards.

More Information
Manufacturer Part Code	F2011DA
SKU	FUSEB-F2011DA
Product Finish	Powder Coated
Material	Steel
Colour	Cream RAL 9001
Ingress Protection	IP2XC
Mounting Method	Surface
Outgoing Ways	11 Way
Number of RCDs	2
Depth (mm)	113.00 mm
Width (mm)	378.00 mm
Height (mm)	259.00 mm
Door/Lid Type	Solid
Pole Configuration	2P
Incomer Type	Switch Disconnector
Incomer current rating	100 A
Incomer Included	Yes
RCD Sensitivity	30 mA
RCD included	Yes
Split Load	Yes
Metered	No
Outgoing Devices Included	No
18th Edition Compliant	Yes
Standards	BS EN 61439-3
Number of Phases	Single
Is on Sale	No

Distribution Boards \| Description \| Current Rating (max)	100 A
Distribution Boards \| Description \| Product	Consumer Unit
Distribution Boards \| Description \| Product Type	11 Way Dual RCD Type A
Distribution Boards \| Description \| Product	Consumer Unit
Distribution Boards \| Features \| Door/Lid Type	Solid
Distribution Boards \| Features \| High Integrity	No
Distribution Boards \| Features \| Incomer Included	Y
Distribution Boards \| Features \| Incomer Type	Switch Disconnector
Distribution Boards \| Features \| Ingress Protection (EF005474)	IP2XC
Distribution Boards \| Features \| Installation Type	Domestic
Distribution Boards \| Features \| Metered	N
Distribution Boards \| Features \| Mounting (EF000003)	Surface
Distribution Boards \| Features \| Number of RCD s	2
Distribution Boards \| Features \| Outgoing Devices Included	N
Distribution Boards \| Features \| Outgoing Ways	11 Way
Distribution Boards \| Features \| Pole Configuration	Double Pole (2P)
Distribution Boards \| Features \| RCD 2 Rating	80 A
Distribution Boards \| Features \| RCD 2 Sensitivity	30 mA
Distribution Boards \| Features \| RCD Rating	80 A
Distribution Boards \| Features \| RCD Sensitivity	30 mA
Distribution Boards \| Features \| RCD s Included	Y
Distribution Boards \| Features \| Rated Voltage	230 V
Distribution Boards \| Features \| Split Load	Y
Distribution Boards \| Features \| Surge Protection Included	No
Distribution Boards \| General \| Standards	BS EN 61439-3
Distribution Boards \| Material & Finish \| Body Colour	Cream RAL 9001
Distribution Boards \| Material & Finish \| Body Finish	Powder Coated
Distribution Boards \| Technical Data \| 18th Edition Compliant	Y

Distribution Boards \| Description \| Current Rating (max)	100 A
Distribution Boards \| Description \| Product	Consumer Unit
Distribution Boards \| Description \| Product Type	11 Way Dual RCD Type A
Distribution Boards \| Description \| Product	Consumer Unit
Distribution Boards \| Features \| Door/Lid Type	Solid
Distribution Boards \| Features \| High Integrity	No
Distribution Boards \| Features \| Incomer Included	Y
Distribution Boards \| Features \| Incomer Type	Switch Disconnector
Distribution Boards \| Features \| Ingress Protection (EF005474)	IP2XC
Distribution Boards \| Features \| Installation Type	Domestic
Distribution Boards \| Features \| Metered	N
Distribution Boards \| Features \| Mounting (EF000003)	Surface
Distribution Boards \| Features \| Number of RCD s	2
Distribution Boards \| Features \| Outgoing Devices Included	N
Distribution Boards \| Features \| Outgoing Ways	11 Way
Distribution Boards \| Features \| Pole Configuration	Double Pole (2P)
Distribution Boards \| Features \| RCD 2 Rating	80 A
Distribution Boards \| Features \| RCD 2 Sensitivity	30 mA
Distribution Boards \| Features \| RCD Rating	80 A
Distribution Boards \| Features \| RCD Sensitivity	30 mA
Distribution Boards \| Features \| RCD s Included	Y
Distribution Boards \| Features \| Rated Voltage	230 V
Distribution Boards \| Features \| Split Load	Y
Distribution Boards \| Features \| Surge Protection Included	No
Distribution Boards \| General \| Standards	BS EN 61439-3
Distribution Boards \| Material & Finish \| Body Colour	Cream RAL 9001
Distribution Boards \| Material & Finish \| Body Finish	Powder Coated
Distribution Boards \| Technical Data \| 18th Edition Compliant	Y
